- SMD

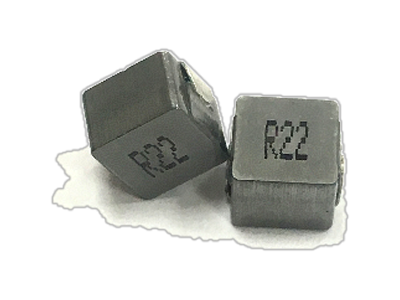

SM2515B Series
• T & R Qtys: 1200 pcs , 13'' Reel.
• Operating Temperature Range -55°C to + 125°C.
• Rohs and HF Compliance Component.
• Operating Temperature Range -55°C to + 125°C.
• Rohs and HF Compliance Component.
| Part Number | Height (mm) Max | Inductance L (uH) | DCR @25℃ (mΩ) | Irms (A) @ΔT 40℃ | Isat10 (A) @25℃ Drop 30% | Dimension L (mm) Max | Dimension W (mm) Max | Description | Download | |
|---|---|---|---|---|---|---|---|---|---|---|
| 4 | 2.2 | 11 | 10 | 11 | 7.3 | 6.8 | 2.2uH, 20%, 11mOhm, 11Amp Max. SMD Molded Inductor | Data Sheet |
