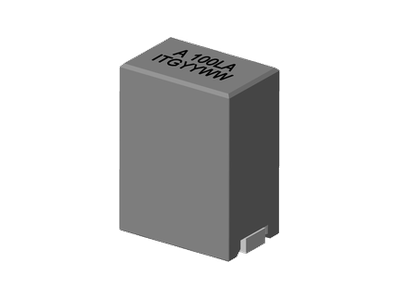

AHR4053 Series
• Ferrite based SMD inductor with lower core loss
• Inductance Range: 70.0nH to 150.0nH, Custom values are welcomed
• High current output chokes, up to 180.0 Amp with approx. 20% roll off
• Low Profile 13.50 mm Max. height
• Foot Print 10.00 x 6.40 mm
• Perfect for high density designs with limited board space
• Operating frequency up to 5.0 MHz application
• Operating Temperature Range -55°C to + 130°C , RoHs & HF compliance
• T & R Qtys: 250 pcs , 13'' Reel
• Inductance Range: 70.0nH to 150.0nH, Custom values are welcomed
• High current output chokes, up to 180.0 Amp with approx. 20% roll off
• Low Profile 13.50 mm Max. height
• Foot Print 10.00 x 6.40 mm
• Perfect for high density designs with limited board space
• Operating frequency up to 5.0 MHz application
• Operating Temperature Range -55°C to + 130°C , RoHs & HF compliance
• T & R Qtys: 250 pcs , 13'' Reel
| Part Number | Height (mm) Max | Inductance L (uH) | DCR @25℃ (mΩ) | Irms (A) @ΔT 40℃ | Isat2 (A) @25℃ Drop 20% | Dimension L (mm) Max | Dimension W (mm) Max | Description | Download | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 13.5 | 0.15 | 0.125 | 78 | 84 | 10 | 6.4 | 150nH, 15%, 0.125mOhm, 84.0A MAX. SMD Power Bead | Data Sheet | 3D Step File | ||
| 13.5 | 0.135 | 0.125 | 78 | 95 | 10 | 6.4 | 135nH, 15%, 0.125mOhm, 95.0A MAX. SMD Power Bead | Data Sheet | 3D Step File | ||
| 13.5 | 0.12 | 0.125 | 78 | 107 | 10 | 6.4 | 120nH, 15%, 0.125mOhm, 107.0A MAX. SMD Power Bead | Data Sheet | 3D Step File | ||
| 13.5 | 0.1 | 0.125 | 78 | 129 | 10 | 6.4 | 100nH, 15%, 0.125mOhm, 129.0A MAX. SMD Power Bead | Data Sheet | 3D Step File | ||
| 13.5 | 0.09 | 0.125 | 78 | 140 | 10 | 6.4 | 90nH, 15%, 0.125mOhm, 140.0A MAX. SMD Power Bead | Data Sheet | 3D Step File | ||
| 13.5 | 0.08 | 0.125 | 78 | 155 | 10 | 6.4 | 80nH, 15%, 0.125mOhm, 155.0A MAX. SMD Power Bead | Data Sheet | 3D Step File | ||
| 13.5 | 0.07 | 0.125 | 78 | 180 | 10 | 6.4 | 70nH, 15%, 0.125mOhm, 180.0A MAX. SMD Power Bead | Data Sheet | 3D Step File |
