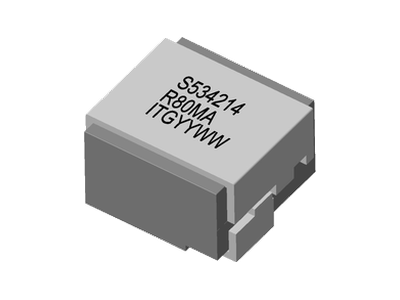

SLM534214 Series
• Ferrite based SMD inductor with lower core loss.
• Inductance range: 0.22 uH to 2.80 uH , custom values are welcomed.
• High current output chokes,up to 165.0 Amp with approx. 20% roll off.
• Low profile 10.70mm Max. height.
• 14.50 x 13.50 mm Foot Print.
• Ideal for Buck Converter, VRM & High Density Board Design.
• Operating frequency of up to 1.0MHz.
• Operating temperature range of -55°C to + 130°C.
• RoHS & HF compliant.
• T & R Qty’s: 250pcs, 13'' Reel.
• Inductance range: 0.22 uH to 2.80 uH , custom values are welcomed.
• High current output chokes,up to 165.0 Amp with approx. 20% roll off.
• Low profile 10.70mm Max. height.
• 14.50 x 13.50 mm Foot Print.
• Ideal for Buck Converter, VRM & High Density Board Design.
• Operating frequency of up to 1.0MHz.
• Operating temperature range of -55°C to + 130°C.
• RoHS & HF compliant.
• T & R Qty’s: 250pcs, 13'' Reel.
| Part Number | Height (mm) Max | Inductance L (uH) | DCR @25℃ (mΩ) | Irms (A) @ΔT 40℃ | Isat2 (A) @25℃ Drop 20% | Dimension L (mm) Max | Dimension W (mm) Max | Description | Download | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 10.7 | 2.8 | 0.42 | 44 | 12 | 14.5 | 13.5 | 2.80uH, 20%, 0.42mOhm, 12.0A Max. SMD Power Bead | Data Sheet | |||
| 10.7 | 2.2 | 0.42 | 44 | 14 | 14.5 | 13.5 | 2.2uH, 20%, 0.42mOhm, 14Amp Max. SMD Power bead | Data Sheet | |||
| 10.7 | 1.5 | 0.42 | 44 | 25 | 14.5 | 13.5 | 1.5uH, 20%, 0.42mOhm, 25Amp Max. SMD Power bead | Data Sheet | |||
| 10.7 | 1.2 | 0.42 | 44 | 32 | 14.5 | 13.5 | 1.2uH, 20%, 0.42mOhm, 32Amp Max. SMD Power bead | Data Sheet | |||
| 10.7 | 1 | 0.42 | 44 | 40 | 14.5 | 13.5 | 1uH, 20%, 0.42mOhm, 40Amp Max. SMD Power bead | Data Sheet | |||
| 10.7 | 0.8 | 0.42 | 44 | 50 | 14.5 | 13.5 | 0.8uH, 20%, 0.42mOhm, 50Amp Max. SMD Power bead | Data Sheet | |||
| 10.7 | 0.625 | 0.42 | 44 | 62 | 14.5 | 13.5 | 0.625uH, 20%, 0.42mOhm, 62Amp Max. SMD Power bead | Data Sheet | 3D Step File | ||
| 10.7 | 0.47 | 0.42 | 44 | 81 | 14.5 | 13.5 | 0.47uH, 20%, 0.42mOhm, 81Amp Max. SMD Power bead | Data Sheet | |||
| 10.7 | 0.39 | 0.42 | 44 | 100 | 14.5 | 13.5 | 0.39uH, 20%, 0.42mOhm, 100Amp Max. SMD Power bead | Data Sheet | |||
| 10.7 | 0.22 | 0.42 | 44 | 165 | 14.5 | 13.5 | 0.22uH, 20%, 0.42mOhm, 165.0A Max. SMD Power Bead | Data Sheet |
