- DIP

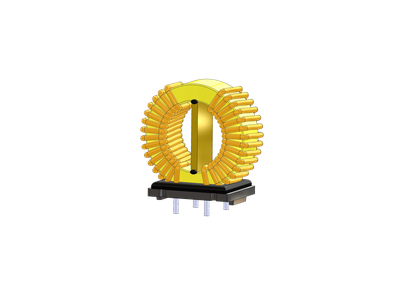

DCM232412B Series
Features of DCM232412B Series :
•58.0 ×31.0mm Max.(L×W),61.5mm Max. Height.
•Inductance range: 2.1mH～50.0mH,Custom values are welcomed.
•AC common mode noise filter for Power Supplies and Lighting Application.
•Rated Voltage: 300VAC.
•Dielectric strength:2100Vrms,winding to winding.
•Insulation material meet requirement of UL510 flame retardant.
•UL94V-0 compliant for plastic material.
•Operating temperature: -40 to +125℃.
•RoHs & HF Compliant Components.
| Part Number | Height (mm) Max | Dimension L (mm) Max | Dimension W (mm) Max | Description | Download |
|---|---|---|---|---|---|
| 61.5 | 56 | 31 | 10.0mH, 30%, 22.5mOhm, 12.5A Max DIP Common Mode Choke | ||
| 60.5 | 56 | 31 | 15.0mH, 30%, 35.0mOhm, 10.0A Max DIP Common Mode Choke | ||
| 60 | 56 | 31 | 20.0mH, 30%, 55.0mOhm, 7.5A Max DIP Common Mode Choke | ||
| 60.5 | 58 | 31 | 2.1mH, 30%, 5.5mOhm, 30.0A Max DIP Common Mode Choke | ||
| 60.5 | 58 | 31 | 3.0mH, 30%, 7.0mOhm, 26.5A Max DIP Common Mode Choke | ||
| 60 | 56 | 31 | 30.0mH, 30%, 98.0mOhm, 5.5A Max DIP Common Mode Choke | ||
| 60.5 | 58 | 31 | 5.0mH, 30%, 10.5mOhm, 21.0A Max DIP Common Mode Choke | ||
| 58 | 56 | 31 | 50.0mH, 30%, 155.0mOhm, 4.5A Max DIP Common Mode Choke | ||
| 60.5 | 57 | 31 | 8.0mH, 30%, 16.0mOhm, 17.0A Max DIP Common Mode Choke |
