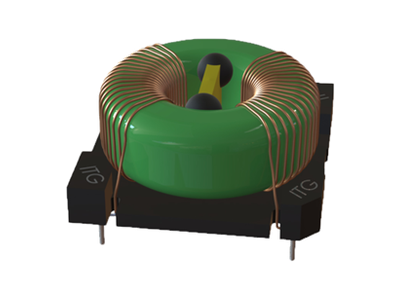

C301306 Series
• 43.9×43.9mm Max.(L×W),27mm Max. Height.
• Inductance range: 1.7mH～6.7mH,Custom values are welcomed.
• AC common mode noise filter for Power Supplies and Lighting Application.
• Rated Voltage: 250VAC.
• Dielectric strength:1500Vrms,winding to winding.
• UL 94 V-0 Material
• Operating temperature: -40 to +125℃.
• RoHS & HF compliance Components.
• Inductance range: 1.7mH～6.7mH,Custom values are welcomed.
• AC common mode noise filter for Power Supplies and Lighting Application.
• Rated Voltage: 250VAC.
• Dielectric strength:1500Vrms,winding to winding.
• UL 94 V-0 Material
• Operating temperature: -40 to +125℃.
• RoHS & HF compliance Components.
| Part Number | Height (mm) Max | Dimension L (mm) Max | Dimension W (mm) Max | Description | Download | ||||
|---|---|---|---|---|---|---|---|---|---|
| 27 | 43.9 | 43.9 | 1.7mH, 30%, 6.5mOhm, 18A Rated, Common Mode Choke DIP | Data Sheet | |||||
| 27 | 43.9 | 43.9 | 2.0mH, 30%, 8.0mOhm, 16A Rated. Common Mode Choke DIP | Data Sheet | LT Spice | LT Spice | S Parameter | ||
| 26.5 | 43.9 | 43.9 | 3.3mH, 30%, 11mOhm, 13.5A Rated. Common Mode Choke DIP | Data Sheet | LT Spice | LT Spice | S Parameter | ||
| 26.5 | 43.9 | 43.9 | 3.8mH, 30%, 13.5mOhm, 12.5A Rated. Common Mode Choke DIP | Data Sheet | |||||
| 26.5 | 43.9 | 43.9 | 5.4mH, 30%, 21mOhm, 10A Rated. Common Mode Choke DIP | Data Sheet | LT Spice | LT Spice | S Parameter | ||
| 26 | 43.9 | 43.9 | 6.7mH, 35mOhm, 7.5A Rated. Common Mode Choke DIP | Data Sheet |
