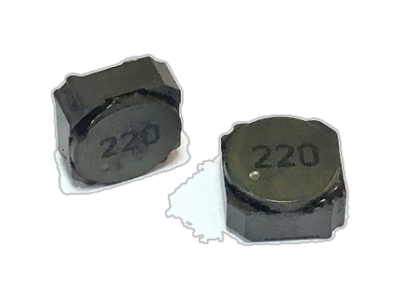

SDRR10350 Series
• Ferrite based SMD Inductor with lower core loss.
• Inductance Range:2.4uH to 150uH. Custom values are welcomed.
• High current output chokes, up to 13.0 Amp with 35% roll off.
• Foot print 10.3 x 10.3mm Max. Low profile 5.0mm Max. height.
• Ideal for LED driver and High Density DC to DC converter application.
• Operating Temperature Range -55°C to + 130°C;RoHs&HF compliance.
• T & R Qtys: 800 pcs , 13'' Reel.
• Inductance Range:2.4uH to 150uH. Custom values are welcomed.
• High current output chokes, up to 13.0 Amp with 35% roll off.
• Foot print 10.3 x 10.3mm Max. Low profile 5.0mm Max. height.
• Ideal for LED driver and High Density DC to DC converter application.
• Operating Temperature Range -55°C to + 130°C;RoHs&HF compliance.
• T & R Qtys: 800 pcs , 13'' Reel.
| Part Number | Length (mm) Max | Height (mm) Max | Dimension W (mm) Max | Description | Download | |
|---|---|---|---|---|---|---|
| 10.3 | 5 | 10.3 | 10uH, 25%, 17.3mOhm, 5.5Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 10.3 | 5 | 10.3 | 100uH, 25%, 143mOhm, 1.9Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 10.3 | 5 | 10.3 | 12uH, 25%, 19.4mOhm, 5Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 10.3 | 5 | 10.3 | 120uH, 25%, 178.5mOhm, 1.7Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 10.3 | 5 | 10.3 | 15uH, 25%, 23.9mOhm, 4.5Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 10.3 | 5 | 10.3 | 150uH, 25%, 224.2mOhm, 1.6Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 10.3 | 5 | 10.3 | 18uH, 25%, 26.5mOhm, 4.1Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 10.3 | 5 | 10.3 | 22uH, 25%, 32.4mOhm, 4Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 10.3 | 5 | 10.3 | 27uH, 25%, 39.7mOhm, 3.6Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 10.3 | 5 | 10.3 | 2.4uH, 25%, 6.2mOhm, 13Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 10.3 | 5 | 10.3 | 33uH, 25%, 46.8mOhm, 3.3Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 10.3 | 5 | 10.3 | 39uH, 25%, 60.2mOhm, 3Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 10.3 | 5 | 10.3 | 3.6uH, 25%, 8.3mOhm, 11.2Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 10.3 | 5 | 10.3 | 47uH, 25%, 64.6mOhm, 2.7Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 10.3 | 5 | 10.3 | 56uH, 25%, 77.1mOhm, 2.4Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 10.3 | 5 | 10.3 | 5uH, 25%, 11mOhm, 9.5Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 10.3 | 5 | 10.3 | 68uH, 25%, 96.2mOhm, 2.3Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 10.3 | 5 | 10.3 | 6.6uH, 25%, 15.2mOhm, 8.3Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 10.3 | 5 | 10.3 | 82uH, 25%, 119.4mOhm, 2.1Amp Max. SMD Shielded Drum Inductor | Data Sheet | ||
| 10.3 | 5 | 10.3 | 8.5uH, 25%, 20mOhm, 7.5Amp Max. SMD Shielded Drum Inductor | Data Sheet |
