- SMD

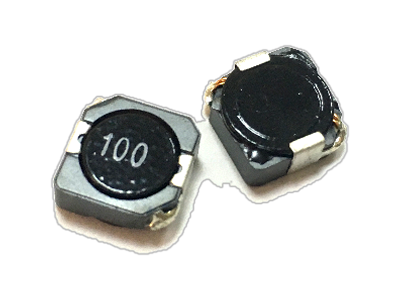

SDRS73 Series
• 0.25” foot print, low profile shielded inductor.
• Inductance range: 3uH ~ 100uH.
• Ideally for high density board application.
• Inductance range: 3uH ~ 100uH.
• Ideally for high density board application.
| Part Number | Length (mm) Max | Height (mm) Max | Dimension W (mm) Max | Description | Download | |
|---|---|---|---|---|---|---|
| 7.3 | 3.2 | 7 | 10uH, 10%, 47mOhm, 1.7Amp Max. SMD Drum Inductor | Data Sheet | ||
| 7.3 | 3.2 | 7 | 10uH, 20%, 47mOhm, 1.7Amp Max. SMD Drum Inductor | Data Sheet | ||
| 7.3 | 3.2 | 7 | 10uH, 30%, 47mOhm, 1.7Amp Max. SMD Drum Inductor | Data Sheet | ||
| 7.3 | 3.2 | 7 | 100uH, 10%, 440mOhm, 0.54Amp Max. SMD Drum Inductor | Data Sheet | ||
| 7.3 | 3.2 | 7 | 100uH, 20%, 440mOhm, 0.54Amp Max. SMD Drum Inductor | Data Sheet | ||
| 7.3 | 3.2 | 7 | 100uH, 30%, 440mOhm, 0.54Amp Max. SMD Drum Inductor | Data Sheet | ||
| 7.3 | 3.2 | 7 | 12uH, 10%, 54mOhm, 1.55Amp Max. SMD Drum Inductor | Data Sheet | ||
| 7.3 | 3.2 | 7 | 12uH, 20%, 54mOhm, 1.55Amp Max. SMD Drum Inductor | Data Sheet | ||
| 7.3 | 3.2 | 7 | 12uH, 30%, 54mOhm, 1.55Amp Max. SMD Drum Inductor | Data Sheet | ||
| 7.3 | 3.2 | 7 | 15uH, 10%, 71mOhm, 1.4Amp Max. SMD Drum Inductor | Data Sheet | ||
| 7.3 | 3.2 | 7 | 15uH, 20%, 71mOhm, 1.4Amp Max. SMD Drum Inductor | Data Sheet | ||
| 7.3 | 3.2 | 7 | 15uH, 30%, 71mOhm, 1.4Amp Max. SMD Drum Inductor | Data Sheet | ||
| 7.3 | 3.2 | 7 | 18uH, 10%, 88mOhm, 1.32Amp Max. SMD Drum Inductor | Data Sheet | ||
| 7.3 | 3.2 | 7 | 18uH, 20%, 88mOhm, 1.32Amp Max. SMD Drum Inductor | Data Sheet | ||
| 7.3 | 3.2 | 7 | 18uH, 30%, 88mOhm, 1.32Amp Max. SMD Drum Inductor | Data Sheet | ||
| 7.3 | 3.2 | 7 | 22uH, 10%, 110mOhm, 1.2Amp Max. SMD Drum Inductor | Data Sheet | ||
| 7.3 | 3.2 | 7 | 22uH, 20%, 110mOhm, 1.2Amp Max. SMD Drum Inductor | Data Sheet | ||
| 7.3 | 3.2 | 7 | 22uH, 30%, 110mOhm, 1.2Amp Max. SMD Drum Inductor | Data Sheet | ||
| 7.3 | 3.2 | 7 | 27uH, 10%, 127mOhm, 1.05Amp Max. SMD Drum Inductor | Data Sheet | ||
| 7.3 | 3.2 | 7 | 27uH, 20%, 127mOhm, 1.05Amp Max. SMD Drum Inductor | Data Sheet | ||
| 7.3 | 3.2 | 7 | 27uH, 30%, 127mOhm, 1.05Amp Max. SMD Drum Inductor | Data Sheet | ||
| 7.3 | 3.2 | 7 | 33uH, 10%, 150mOhm, 0.97Amp Max. SMD Drum Inductor | Data Sheet | ||
| 7.3 | 3.2 | 7 | 33uH, 20%, 150mOhm, 0.97Amp Max. SMD Drum Inductor | Data Sheet | ||
| 7.3 | 3.2 | 7 | 33uH, 30%, 150mOhm, 0.97Amp Max. SMD Drum Inductor | Data Sheet | ||
| 7.3 | 3.2 | 7 | 39uH, 10%, 180mOhm, 0.86Amp Max. SMD Drum Inductor | Data Sheet | ||
| 7.3 | 3.2 | 7 | 39uH, 20%, 180mOhm, 0.86Amp Max. SMD Drum Inductor | Data Sheet | ||
| 7.3 | 3.2 | 7 | 39uH, 30%, 180mOhm, 0.86Amp Max. SMD Drum Inductor | Data Sheet | ||
| 7.3 | 3.2 | 7 | 3uH, 10%, 17mOhm, 3Amp Max. SMD Drum Inductor | Data Sheet | ||
| 7.3 | 3.2 | 7 | 3uH, 20%, 17mOhm, 3Amp Max. SMD Drum Inductor | Data Sheet | ||
| 7.3 | 3.2 | 7 | 3uH, 30%, 17mOhm, 3Amp Max. SMD Drum Inductor | Data Sheet | ||
| 7.3 | 3.2 | 7 | 3.9uH, 10%, 21mOhm, 2.6Amp Max. SMD Drum Inductor | Data Sheet | ||
| 7.3 | 3.2 | 7 | 3.9uH, 20%, 21mOhm, 2.6Amp Max. SMD Drum Inductor | Data Sheet | ||
| 7.3 | 3.2 | 7 | 3.9uH, 30%, 21mOhm, 2.6Amp Max. SMD Drum Inductor | Data Sheet | ||
| 7.3 | 3.2 | 7 | 47uH, 10%, 190mOhm, 0.8Amp Max. SMD Drum Inductor | Data Sheet | ||
| 7.3 | 3.2 | 7 | 47uH, 20%, 190mOhm, 0.8Amp Max. SMD Drum Inductor | Data Sheet | ||
| 7.3 | 3.2 | 7 | 47uH, 30%, 190mOhm, 0.8Amp Max. SMD Drum Inductor | Data Sheet | ||
| 7.3 | 3.2 | 7 | 56uH, 10%, 250mOhm, 0.73Amp Max. SMD Drum Inductor | Data Sheet | ||
| 7.3 | 3.2 | 7 | 56uH, 20%, 250mOhm, 0.73Amp Max. SMD Drum Inductor | Data Sheet | ||
| 7.3 | 3.2 | 7 | 56uH, 30%, 250mOhm, 0.73Amp Max. SMD Drum Inductor | Data Sheet | ||
| 7.3 | 3.2 | 7 | 5uH, 10%, 25mOhm, 2.4Amp Max. SMD Drum Inductor | Data Sheet | ||
| 7.3 | 3.2 | 7 | 5uH, 20%, 25mOhm, 2.4Amp Max. SMD Drum Inductor | Data Sheet | ||
| 7.3 | 3.2 | 7 | 5uH, 30%, 25mOhm, 2.4Amp Max. SMD Drum Inductor | Data Sheet | ||
| 7.3 | 3.2 | 7 | 68uH, 10%, 290mOhm, 0.65Amp Max. SMD Drum Inductor | Data Sheet | ||
| 7.3 | 3.2 | 7 | 68uH, 20%, 290mOhm, 0.65Amp Max. SMD Drum Inductor | Data Sheet | ||
| 7.3 | 3.2 | 7 | 68uH, 30%, 290mOhm, 0.65Amp Max. SMD Drum Inductor | Data Sheet | ||
| 7.3 | 3.2 | 7 | 6uH, 10%, 30mOhm, 2.25Amp Max. SMD Drum Inductor | Data Sheet | ||
| 7.3 | 3.2 | 7 | 6uH, 20%, 30mOhm, 2.25Amp Max. SMD Drum Inductor | Data Sheet | ||
| 7.3 | 3.2 | 7 | 6uH, 30%, 30mOhm, 2.25Amp Max. SMD Drum Inductor | Data Sheet | ||
| 7.3 | 3.2 | 7 | 7.3uH, 10%, 35mOhm, 2.1Amp Max. SMD Drum Inductor | Data Sheet | ||
| 7.3 | 3.2 | 7 | 7.3uH, 20%, 35mOhm, 2.1Amp Max. SMD Drum Inductor | Data Sheet |
