- Filter

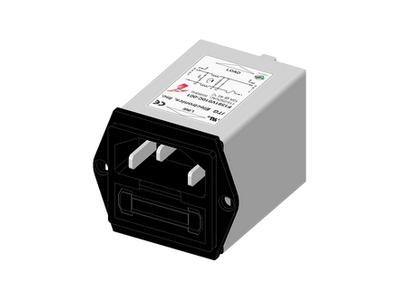

F1591 Series
• Single stage multi-purpose Power Entry EMI Filters modules with single or Double Fuse
• Designed to suppress Common and Differential mode emissions
• Current Rating: 1A to 10A
• Voltage Rating: 115
• 250VAC
• Frequency: 50
• 60Hz
• Hi-Pot Rating: Line to Ground 2250VDC for 2 sec
• Hi-Pot Line to Line: 1450VDC for 2 sec
• Ambient Temperature Range: -25°C To +85°C
• Filter components are encapsulated in a plated metal enclosure
• Leakage Current: 0.45mA max. @ 250VAC 50Hz
• Power Supplies, UPS, Inverters, Convertors, Medical equipment, House Hold Appliances, etc
• cURus recognized and CE certified
• Designed to suppress Common and Differential mode emissions
• Current Rating: 1A to 10A
• Voltage Rating: 115
• 250VAC
• Frequency: 50
• 60Hz
• Hi-Pot Rating: Line to Ground 2250VDC for 2 sec
• Hi-Pot Line to Line: 1450VDC for 2 sec
• Ambient Temperature Range: -25°C To +85°C
• Filter components are encapsulated in a plated metal enclosure
• Leakage Current: 0.45mA max. @ 250VAC 50Hz
• Power Supplies, UPS, Inverters, Convertors, Medical equipment, House Hold Appliances, etc
• cURus recognized and CE certified
| Part Number | Description | Download | |
|---|---|---|---|
| Single stage multi-purpose Power Entry EMI Filters modules with single or Double Fuse, 1Amp,Fast-on 6.35x0.8 for output connections | Data Sheet | Data Sheet | |
| Single stage multi-purpose Power Entry EMI Filters modules with single or Double Fuse,3 Amp,Fast-on 6.35x0.8 for output connections | Data Sheet | ||
| Single stage multi-purpose Power Entry EMI Filters modules with single or Double Fuse,6 Amp,Fast-on 6.35x0.8 for output connections | Data Sheet | ||
| Single stage multi-purpose Power Entry EMI Filters modules with single or Double Fuse,10 Amp,Fast-on 6.35x0.8 for output connections | Data Sheet |
