- Filter

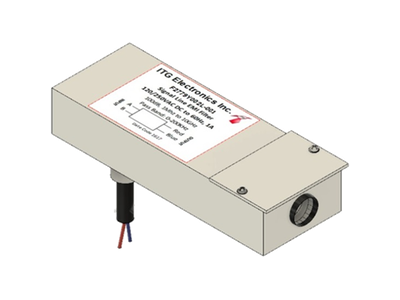

F2779 Series
• •Low Voltage Dataline filter design to provide clean power into Shielded
• MRI rooms. The filters are designed with minimum leakage current to ground and provide 100dB attenuation from 1MHz to 10GHz, Pass Band 0-200KHz.•Voltage Rating: 120
• 250V•Current Rated: 2.5 Amp•Frequency: DC to 60Hz•Hi-Pot: Line to Ground: 1000VDC for 2 secLine to Line: VDC for 2 sec•Ambient Temperature Range: -25°C To +85°C•Filter components are encapsulated in a plated metal enclosure•Ideal for Fire Alarm, LED Lighting, Datalines and other low power applications•Leakage Current: 5mA @ 120VAC 60Hz•The filters comply with UL and cUL construction requirements
• MRI rooms. The filters are designed with minimum leakage current to ground and provide 100dB attenuation from 1MHz to 10GHz, Pass Band 0-200KHz.•Voltage Rating: 120
• 250V•Current Rated: 2.5 Amp•Frequency: DC to 60Hz•Hi-Pot: Line to Ground: 1000VDC for 2 secLine to Line: VDC for 2 sec•Ambient Temperature Range: -25°C To +85°C•Filter components are encapsulated in a plated metal enclosure•Ideal for Fire Alarm, LED Lighting, Datalines and other low power applications•Leakage Current: 5mA @ 120VAC 60Hz•The filters comply with UL and cUL construction requirements
| Part Number | Description | Download | |
|---|---|---|---|
| 315.0mm Length Pipe Extender and Coupler | Data Sheet | Data Sheet |
