- Filter

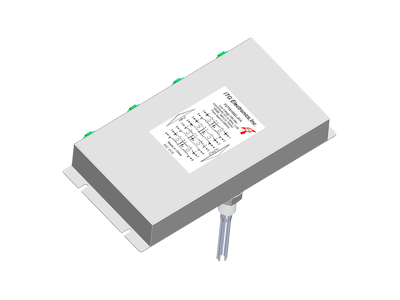

F2779Y002L Series
• EMI Filter design to provide clean power into Shielded
• MRI rooms. The filters are designed with minimum leakage current to ground and provide 100dB attenuation from 1MHz to 10GHz, Pass Band 0-200KHz.
• Voltage Rating: 120
• 250V
• Current Rated: 2.5 Amp
• Frequency: DC to 60Hz
• Hi-Pot: Line to Ground: 1000VDC for 2 sec
• Line to Line: VDC for 2 sec
• Ambient Temperature Range: -25°C To +85°C
• Filter components are encapsulated in a plated metal enclosure
• Leakage Current: 5mA @ 120VAC 60Hz
• The filters comply with UL and cUL construction requirements
• MRI rooms. The filters are designed with minimum leakage current to ground and provide 100dB attenuation from 1MHz to 10GHz, Pass Band 0-200KHz.
• Voltage Rating: 120
• 250V
• Current Rated: 2.5 Amp
• Frequency: DC to 60Hz
• Hi-Pot: Line to Ground: 1000VDC for 2 sec
• Line to Line: VDC for 2 sec
• Ambient Temperature Range: -25°C To +85°C
• Filter components are encapsulated in a plated metal enclosure
• Leakage Current: 5mA @ 120VAC 60Hz
• The filters comply with UL and cUL construction requirements
| Part Number | Description | Download | |
|---|---|---|---|
| MRI Room filter for LED Lighting, 2.5 Amp, #22 AWG wire for output connections | Data Sheet | Data Sheet |
