- Filter

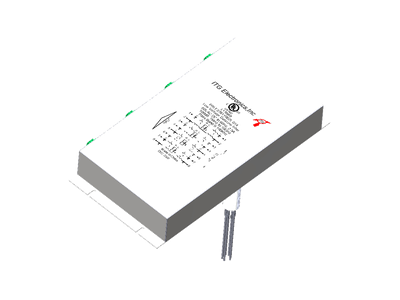

F2781Y Series
• • Low Voltage Dataline filter design to provide clean power into Shielded
• MRI rooms. The filters are designed with minimum leakage current to ground and provide 100dB attenuation from 1MHz to 10GHz, Pass Band 0-100KHz.• Voltage Rating: 60V• Current Rated: 2.5-5 amp *For UL 1863 the filter is rated at 1.6 amps*• Frequency: DC to 60Hz• Hi-Pot: Line to Ground: 1000VDC for 2 sec Line to Line: VDC for 2 sec• Ambient Temperature Range: -25°C To +85°C• Filter components are encapsulated in a plated metal enclosure• Ideal for Fire Alarm, LED Lighting, Datalines and other low power applications• Leakage Current: 5mA @ 60VAC 60Hz• UL Listed
• MRI rooms. The filters are designed with minimum leakage current to ground and provide 100dB attenuation from 1MHz to 10GHz, Pass Band 0-100KHz.• Voltage Rating: 60V• Current Rated: 2.5-5 amp *For UL 1863 the filter is rated at 1.6 amps*• Frequency: DC to 60Hz• Hi-Pot: Line to Ground: 1000VDC for 2 sec Line to Line: VDC for 2 sec• Ambient Temperature Range: -25°C To +85°C• Filter components are encapsulated in a plated metal enclosure• Ideal for Fire Alarm, LED Lighting, Datalines and other low power applications• Leakage Current: 5mA @ 60VAC 60Hz• UL Listed
| Part Number | Description | Download |
|---|---|---|
| 1 channel 2.5A Low Voltage Dataline filter design to provide clean power into Shielded / MRI rooms | Data Sheet | |
| 3 channel 2.5A Low Voltage Dataline filter design to provide clean power into Shielded / MRI rooms | Data Sheet | |
| 4 channels 2.5A Low Voltage Dataline filter design to provide clean power into Shielded / MRI rooms | Data Sheet | |
| 1 channel 5.0A Low Voltage Dataline filter design to provide clean power into Shielded / MRI rooms | Data Sheet | |
| 3 channels 5.0A Low Voltage Dataline filter design to provide clean power into Shielded / MRI rooms | Data Sheet | |
| 4 channels 5.0A Low Voltage Dataline filter design to provide clean power into Shielded / MRI rooms | Data Sheet |
