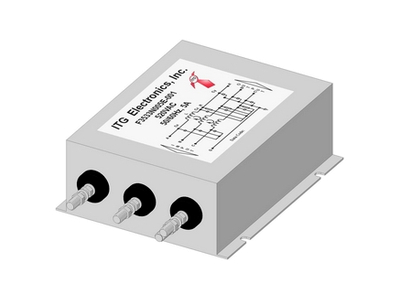

Three Phase Delta F3533N Series
• Three Phase Delta single stage multi-purpose EMI Filters
• Designed to suppress Common and Differential mode emissions
• Current Rating: 5A to 50A
• Voltage Rating: 520VAC
• Frequency: 50/60Hz
• Hi-Pot: Line to Ground: 2250VDC for 2 sec, Line to Line: 1450VDC for 2 sec
• Ambient Temperature Range: -25°C To +85°C
• Filter components are encapsulated in a plated metal enclosure
• Leakage Current: 50mA max. @ 250VAC 60Hz
• Applications: Power supplies, UPS, Inverters, Convertors, Industrial equipment, etc.
• Compliant with UL, cUL, VDE, CE and CQC safety and construction requirements
• Designed to suppress Common and Differential mode emissions
• Current Rating: 5A to 50A
• Voltage Rating: 520VAC
• Frequency: 50/60Hz
• Hi-Pot: Line to Ground: 2250VDC for 2 sec, Line to Line: 1450VDC for 2 sec
• Ambient Temperature Range: -25°C To +85°C
• Filter components are encapsulated in a plated metal enclosure
• Leakage Current: 50mA max. @ 250VAC 60Hz
• Applications: Power supplies, UPS, Inverters, Convertors, Industrial equipment, etc.
• Compliant with UL, cUL, VDE, CE and CQC safety and construction requirements
| Part Number | Description | Download | |
|---|---|---|---|
| Three Phase Single stage Delta EMI filter 5 Amp, M5 Screw connection. | Data Sheet | Data Sheet | |
| Three Phase Single stage Delta EMI filter 15 Amp, M5 Screw connection. | Data Sheet |
