- DIP

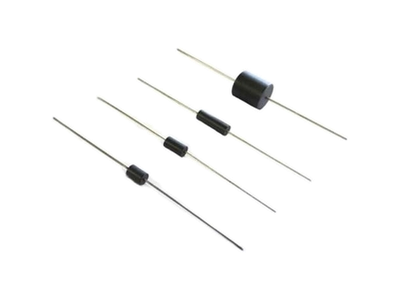

AB035 Series
• Impedance range: 47.0 Ω to 87.80 Ω @25 Mhz and 75.0 Ω to 162.0 Ω @100 Mhz, custom values are welcomed.
• Slim profile 3.70 mm max. Ø x 9.30 mm max length.
• Operating temperature range of -55°C to +130°C.
• RoHS & HF compliant.
• Military Standard Inspection (MIL-STD-105E AQL0.65).
• T & R Qty’s: 5,000pcs, 13'' Reel (2,000pcs for AB035045B).
• Slim profile 3.70 mm max. Ø x 9.30 mm max length.
• Operating temperature range of -55°C to +130°C.
• RoHS & HF compliant.
• Military Standard Inspection (MIL-STD-105E AQL0.65).
• T & R Qty’s: 5,000pcs, 13'' Reel (2,000pcs for AB035045B).
| Part Number | Height (mm) Max | Dimension L (mm) Max | Dimension W (mm) Max | Description | Download | ||
|---|---|---|---|---|---|---|---|
| 3.7 | 4.8 | 3.7 | Z=87.1 Ohm@100Mhz, 25%, DIP Axial Leaded Ferrite Bead | Data Sheet | Data Sheet | ||
| 3.7 | 4.8 | 3.7 | Z=75 Ohm@100Mhz, 25%, DIP Axial Leaded Ferrite Bead | Data Sheet | |||
| 3.7 | 4.8 | 3.7 | Z=125 Ohm@100Mhz, 25%, DIP Axial Leaded Ferrite Bead | Data Sheet | |||
| 3.7 | 6.3 | 3.7 | Z=197 Ohm@100Mhz, 25%, DIP Axial Leaded Ferrite Bead | Data Sheet | |||
| 3.7 | 6.3 | 3.7 | Z=92 Ohm@100Mhz, 25%, DIP Axial Leaded Ferrite Bead | Data Sheet | |||
| 3.7 | 7.8 | 3.7 | Z=122 Ohm@100Mhz, 25%, DIP Axial Leaded Ferrite Bead | Data Sheet | |||
| 3.7 | 7.8 | 3.7 | Z=115 Ohm@100Mhz, 25%, DIP Axial Leaded Ferrite Bead | Data Sheet | |||
| 3.7 | 8.6 | 3.7 | Z=134.6 Ohm@100Mhz, 25%, DIP Axial Leaded Ferrite Bead | Data Sheet | |||
| 3.7 | 9.3 | 3.7 | Z=162 Ohm@100Mhz, 25%, DIP Axial Leaded Ferrite Bead | Data Sheet |
