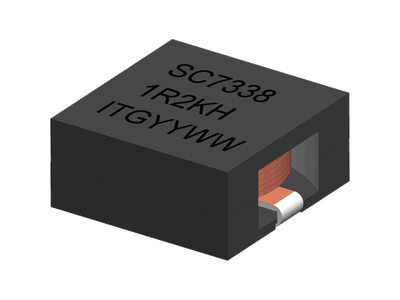

SC7338H Series
• Ferrite based SMD inductor with lower core loss.
• Inductance Range: 1.2uH to 12.0uH, Custom values are welcomed.
• High current output chokes, up to 83.0 Amp with approx. 20% roll off.
• Low Profile 9.50 mm
• 10.00 mm Max. height .
• Foot Print 19.50 x 18.20 mm .
• Ideal for Buck Converter, VRM & High Density Board Design.
• Operating frequency up to 1.0 MHz application.
• Operating Temperature Range -55°
• Inductance Range: 1.2uH to 12.0uH, Custom values are welcomed.
• High current output chokes, up to 83.0 Amp with approx. 20% roll off.
• Low Profile 9.50 mm
• 10.00 mm Max. height .
• Foot Print 19.50 x 18.20 mm .
• Ideal for Buck Converter, VRM & High Density Board Design.
• Operating frequency up to 1.0 MHz application.
• Operating Temperature Range -55°
| Part Number | Height (mm) Max | Dimension L (mm) Max | Dimension W (mm) Max | Description | Download | |
|---|---|---|---|---|---|---|
| 9.5 | 18.7 | 18.7 | 12.00uH, 10%, 1.70mOhm, 9.50A Max. SMD Flat Wire Inductor | Data Sheet | ||
| 10 | 18.7 | 18.7 | 1.20uH, 10%, 1.70mOhm, 83.00A Max. SMD Flat Wire Inductor | Data Sheet | ||
| 9.5 | 18.7 | 18.7 | 1.50uH, 1.70mOhm, 63.00A Max. SMD Flat Wire Inductor | Data Sheet | ||
| 10 | 18.7 | 18.7 | 2.20uH, 10%, 1.70mOhm, 53.00A Max. SMD Flat Wire Inductor | Data Sheet | ||
| 9.5 | 18.7 | 18.7 | 3.30uH, 10%, 1.70mOhm, 35.00A Max. SMD Flat Wire Inductor | Data Sheet | ||
| 9.5 | 18.7 | 18.7 | 5.60uH, 10%, 1.70mOhm, 22.00A Max. SMD Flat Wire Inductor | Data Sheet | ||
| 9.5 | 18.7 | 18.7 | 6.80uH, 10%, 1.70mOhm, 18.00A Max. SMD Flat Wire Inductor | Data Sheet | ||
| 9.5 | 18.7 | 18.7 | 8.20uH, 10%, 1.70mOhm, 14.50A Max. SMD Flat Wire Inductor | Data Sheet | ||
| 9.5 | 18.7 | 18.7 | 9.50uH, 10%, 1.70mOhm, 12.50A Max. SMD Flat Wire Inductor | Data Sheet |
