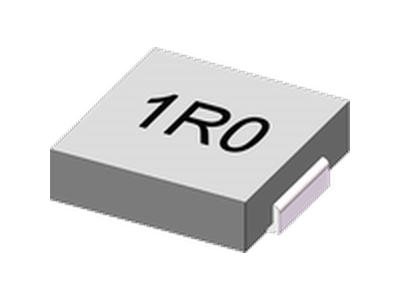

SM1605A Series
• 4.45x4.75mm foot Print, 1.2mm Max. height SMD Power Inductor for high frequency application. Operating frequency up to 5MHz.
• Inductance range from 1.0uH to 4.7uH. Custom values are welcomed.
• High saturation current characteristics by distributed gapped metal dust core.
• Ideal for portable device, Pad, E-reader and high density DC to DC Converter.
• Tape & Reel Quantity: 3,000 piece per 13 inches reel. RoHS and HF compliant.
• Inductance range from 1.0uH to 4.7uH. Custom values are welcomed.
• High saturation current characteristics by distributed gapped metal dust core.
• Ideal for portable device, Pad, E-reader and high density DC to DC Converter.
• Tape & Reel Quantity: 3,000 piece per 13 inches reel. RoHS and HF compliant.
| Part Number | Height (mm) Max | Inductance L (uH) | DCR @25℃ (mΩ) | Irms (A) @ΔT 40℃ | Isat10 (A) @25℃ Drop 30% | Dimension L (mm) Max | Dimension W (mm) Max | Description | Download | |
|---|---|---|---|---|---|---|---|---|---|---|
| 1.2 | 1 | 36.3 | 4.5 | 5.5 | 4.75 | 4.45 | 1uH, 20%, 36.3mOhm, 5.5Amp Max. SMD Molded Inductor | Data Sheet | ||
| 1.2 | 1.5 | 62.3 | 3.25 | 4 | 4.75 | 4.45 | 1.5uH, 20%, 62.3mOhm, 4Amp Max. SMD Molded Inductor | Data Sheet | ||
| 1.2 | 2.2 | 76.5 | 2.75 | 3.5 | 4.75 | 4.45 | 2.2uH, 20%, 76.5mOhm, 3.5Amp Max. SMD Molded Inductor | Data Sheet | ||
| 1.2 | 4.7 | 175.5 | 1.8 | 2.8 | 4.75 | 4.45 | 4.7uH, 20%, 175.5mOhm, 2.8Amp Max. SMD Molded Inductor | Data Sheet | ||
| 1.2 | 0.22 | 9.35 | 7 | 11 | 4.75 | 4.45 | 0.22uH, 20%, 9.35mOhm, 11Amp Max. SMD Molded Inductor | Data Sheet | ||
| 1.2 | 0.33 | 15.4 | 6.5 | 8.4 | 4.75 | 4.45 | 0.33uH, 20%, 15.4mOhm, 8.4Amp Max. SMD Molded Inductor | Data Sheet | ||
| 1.2 | 0.47 | 19.5 | 6 | 6.8 | 4.75 | 4.45 | 0.47uH, 20%, 19.5mOhm, 6.8Amp Max. SMD Molded Inductor | Data Sheet | ||
| 1.2 | 0.68 | 27.9 | 4.7 | 6 | 4.75 | 4.45 | 0.68uH, 20%, 27.9mOhm, 6Amp Max. SMD Molded Inductor | Data Sheet |
