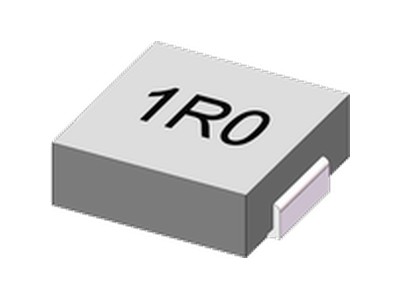

SM1606A Series
• 4.75 x 4.45mm Foot Print, 1.50mm Max. height. SMD Power Inductor for high frequency application. Operating frequency up to 5MHz.
• Inductance range from 0.22uH to 10.0uH. Custom values are welcomed.
• High saturation current characteristics by distributed gapped metal dust core.
• Ideal for portable device, Pad, E-reader and high density DC to DC Converter
• Tape & Reel Quantity: 3000 piece per 13 inches reel. RoHS and HF compliant.
• Inductance range from 0.22uH to 10.0uH. Custom values are welcomed.
• High saturation current characteristics by distributed gapped metal dust core.
• Ideal for portable device, Pad, E-reader and high density DC to DC Converter
• Tape & Reel Quantity: 3000 piece per 13 inches reel. RoHS and HF compliant.
| Part Number | Height (mm) Max | Inductance L (uH) | DCR @25℃ (mΩ) | Irms (A) @ΔT 40℃ | Isat10 (A) @25℃ Drop 30% | Dimension L (mm) Max | Dimension W (mm) Max | Description | Download | |
|---|---|---|---|---|---|---|---|---|---|---|
| 1.5 | 10 | 245 | 1.8 | 2.1 | 4.75 | 4.45 | 10.0uH, 20%, 294.0Ohm max., 2.1Amp Max. SMD Molded Inductor | Data Sheet | ||
| 1.5 | 1 | 23.9 | 5 | 6 | 4.75 | 4.45 | 1.0uH, 20%, 28.0Ohm max., 6Amp Max. SMD Molded Inductor | Data Sheet | ||
| 1.5 | 1.5 | 48 | 4.2 | 4.8 | 4.75 | 4.45 | 1.5uH, 20%, 58.0Ohm max., 4.8Amp Max. SMD Molded Inductor | Data Sheet | ||
| 1.5 | 2.2 | 65 | 3.2 | 4.5 | 4.75 | 4.45 | 2.2uH, 20%, 78.0Ohm max., 4.5Amp Max. SMD Molded Inductor | Data Sheet | ||
| 1.5 | 3.3 | 77 | 3 | 3.2 | 4.75 | 4.45 | 3.3uH, 20%, 92.0Ohm max., 3.2Amp Max. SMD Molded Inductor | Data Sheet | ||
| 1.5 | 4.7 | 108 | 2.4 | 3 | 4.75 | 4.45 | 4.7uH, 20%, 130.0Ohm max., 3Amp Max. SMD Molded Inductor | Data Sheet | ||
| 1.5 | 6.8 | 172 | 2 | 2.3 | 4.75 | 4.45 | 6.8uH, 20%, 206.5Ohm max., 2.3Amp Max. SMD Molded Inductor | Data Sheet | ||
| 1.5 | 0.22 | 6.2 | 10 | 14 | 4.75 | 4.45 | 0.22uH, 20%, 7.5mOhm max., 14Amp Max. SMD Molded Inductor | Data Sheet | ||
| 1.5 | 0.33 | 7 | 9.5 | 11 | 4.75 | 4.45 | 0.33uH, 20%, 8.5mOhm max., 11Amp Max. SMD Molded Inductor | Data Sheet | ||
| 1.5 | 0.47 | 11.3 | 7.5 | 9 | 4.75 | 4.45 | 0.47uH, 20%, 13.7Ohm max., 9Amp Max. SMD Molded Inductor | Data Sheet | ||
| 1.5 | 0.56 | 12 | 7 | 8.3 | 4.75 | 4.45 | 0.56uH, 20%, 14.5Ohm max., 8.3Amp Max. SMD Molded Inductor | Data Sheet | ||
| 1.5 | 0.68 | 15.8 | 6.5 | 8 | 4.75 | 4.45 | 0.68uH, 20%, 19.0Ohm max., 8Amp Max. SMD Molded Inductor | Data Sheet |
