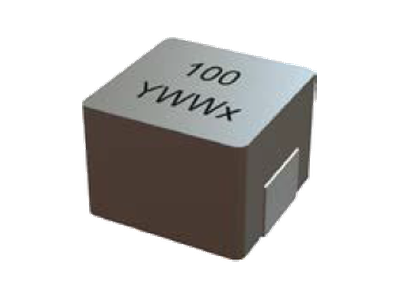

SM2520Q Series
• AEC-Q200 Grade 1 Compliant .
• 8.05 x 7.5 mm foot Print, 5.4mm Max. height SMD Power Inductor for high frequency application, Operating frequency up to 5MHz.
• Inductance range from 4.7uH to 47.0uH. Custom values are welcomed.
• High saturation current characteristics by distributed gapped metal dust core.
• Ideal for portable device, Pad, E-reader and high density DC to DC Converter.
• Operating Temperature Range: -55˚C to 165˚C (ambient + self-temperature rise) .
• T & R Qtys: 500 pcs , 13'' Reel and Plastic tape: 16mm wide, 12mm pocket spacing.
• RoHS and HF compliant.
• 8.05 x 7.5 mm foot Print, 5.4mm Max. height SMD Power Inductor for high frequency application, Operating frequency up to 5MHz.
• Inductance range from 4.7uH to 47.0uH. Custom values are welcomed.
• High saturation current characteristics by distributed gapped metal dust core.
• Ideal for portable device, Pad, E-reader and high density DC to DC Converter.
• Operating Temperature Range: -55˚C to 165˚C (ambient + self-temperature rise) .
• T & R Qtys: 500 pcs , 13'' Reel and Plastic tape: 16mm wide, 12mm pocket spacing.
• RoHS and HF compliant.
| Part Number | Height (mm) Max | Inductance L (uH) | DCR @25℃ (mΩ) | Irms (A) @ΔT 40℃ | Isat10 (A) @25℃ Drop 30% | Dimension L (mm) Max | Dimension W (mm) Max | Description | Download | |
|---|---|---|---|---|---|---|---|---|---|---|
| 5.4 | 10 | 32.5 | 4.7 | 8 | 8.05 | 7.5 | 10uH, 20%, 32.5mOhm, 8A Max. SMD Power Bead | Data Sheet | ||
| 5.4 | 22 | 85.7 | 3 | 5.4 | 8.05 | 7.5 | 22uH, 20%, 85.7mOhm, 5.4A Max. SMD Power Bead | Data Sheet | ||
| 5.4 | 33 | 110 | 2.8 | 4 | 8.05 | 7.5 | 33uH, 20%, 110mOhm, 4A Max. SMD Power Bead | Data Sheet | ||
| 5.4 | 47 | 143.9 | 2.2 | 3 | 8.05 | 7.5 | 47uH, 20%, 143.9mOhm, 3A Max. SMD Power Bead | Data Sheet | ||
| 5.4 | 4.7 | 16.7 | 6.3 | 11.2 | 8.05 | 7.5 | 4.7uH, 20%, 16.7mOhm, 11.2A Max. SMD Power Bead | Data Sheet |
