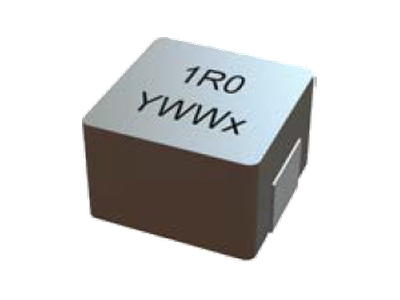

SM3320Q Series
• AEC-Q200 Grade 1 Compliant .
• 8.4 x 8.0 mm foot Print, 5.4mm Max. height SMD Power Inductor for high frequency application, Operating frequency up to 5MHz.
• Inductance range from 1.0uH to 33.0uH. Custom values are welcomed.
• High saturation current characteristics by distributed gapped metal dust core.
• Ideal for portable device, Pad, E-reader and high density DC to DC Converter.
• Operating Temperature Range: -55˚C to 165˚C (ambient + self-temperature rise) .
• T & R Qtys: 500 pcs , 13'' Reel and Plastic tape: 16mm wide, 12mm pocket spacing.
• RoHS and HF compliant.
• 8.4 x 8.0 mm foot Print, 5.4mm Max. height SMD Power Inductor for high frequency application, Operating frequency up to 5MHz.
• Inductance range from 1.0uH to 33.0uH. Custom values are welcomed.
• High saturation current characteristics by distributed gapped metal dust core.
• Ideal for portable device, Pad, E-reader and high density DC to DC Converter.
• Operating Temperature Range: -55˚C to 165˚C (ambient + self-temperature rise) .
• T & R Qtys: 500 pcs , 13'' Reel and Plastic tape: 16mm wide, 12mm pocket spacing.
• RoHS and HF compliant.
| Part Number | Height (mm) Max | Inductance L (uH) | DCR @25℃ (mΩ) | Irms (A) @ΔT 40℃ | Isat10 (A) @25℃ Drop 30% | Dimension L (mm) Max | Dimension W (mm) Max | Description | Download | |
|---|---|---|---|---|---|---|---|---|---|---|
| 5.4 | 10 | 33 | 5.5 | 7.5 | 8.4 | 7.8 | 10uH, 20%, 33mOhm, 7.5A Max. SMD Power Bead | Data Sheet | ||
| 5.4 | 15 | 42 | 4.8 | 5.5 | 8.4 | 7.8 | 15uH, 20%, 42mOhm, 5.5A Max. SMD Power Bead | Data Sheet | ||
| 5.4 | 1 | 4.2 | 15 | 16 | 8.4 | 7.8 | 1uH, 20%, 4.2mOhm, 16A Max. SMD Power Bead | Data Sheet | ||
| 5.4 | 22 | 60.5 | 4.5 | 4.5 | 8.4 | 7.8 | 22uH, 20%, 60.5mOhm, 4.5A Max. SMD Power Bead | Data Sheet | ||
| 5.4 | 2.2 | 6.9 | 12 | 13 | 8.4 | 7.8 | 2.2uH, 20%, 6.9mOhm, 13A Max. SMD Power Bead | Data Sheet | ||
| 5.4 | 33 | 103 | 3.2 | 4 | 8.4 | 7.8 | 33uH, 20%, 103mOhm, 4A Max. SMD Power Bead | Data Sheet | ||
| 5.4 | 3.3 | 8.7 | 8 | 9 | 8.4 | 7.8 | 3.3uH, 20%, 8.70mOhm, 9A Max. SMD Power Bead | Data Sheet | ||
| 5.4 | 4.7 | 12.8 | 6.5 | 8 | 8.4 | 7.8 | 4.7uH, 20%, 12.8mOhm, 8A Max. SMD Power Bead | Data Sheet |
