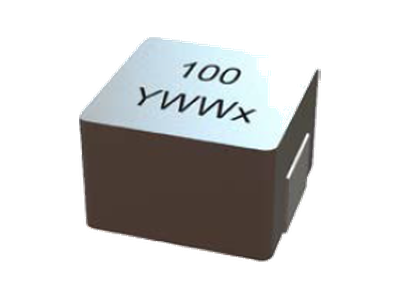

SM4020Q Series
• AEC-Q200 Grade 1 Compliant .
• 11.5 x 10.3 mm foot Print, 5.4mm Max. height SMD Power Inductor for high frequency application, Operating frequency up to 5MHz.
• Inductance range from 10.0uH to 47.0uH. Custom values are welcomed.
• High saturation current characteristics by distributed gapped metal dust core.
• Ideal for portable device, Pad, E-reader and high density DC to DC Converter.
• Operating Temperature Range: -55˚C to 165˚C (ambient + self-temperature rise) .
• T & R Qtys: 500 pcs , 13'' Reel and Plastic tape: 24mm wide, 16mm pocket spacing.
• RoHS and HF compliant.
• 11.5 x 10.3 mm foot Print, 5.4mm Max. height SMD Power Inductor for high frequency application, Operating frequency up to 5MHz.
• Inductance range from 10.0uH to 47.0uH. Custom values are welcomed.
• High saturation current characteristics by distributed gapped metal dust core.
• Ideal for portable device, Pad, E-reader and high density DC to DC Converter.
• Operating Temperature Range: -55˚C to 165˚C (ambient + self-temperature rise) .
• T & R Qtys: 500 pcs , 13'' Reel and Plastic tape: 24mm wide, 16mm pocket spacing.
• RoHS and HF compliant.
| Part Number | Height (mm) Max | Inductance L (uH) | DCR @25℃ (mΩ) | Irms (A) @ΔT 40℃ | Isat10 (A) @25℃ Drop 30% | Dimension L (mm) Max | Dimension W (mm) Max | Description | Download | |
|---|---|---|---|---|---|---|---|---|---|---|
| 5.4 | 10 | 20 | 8.7 | 11.5 | 11.5 | 10.3 | 10.0uH, 20%, 20.0mOhm, 11.5A Max. SMD Power Bead | Data Sheet | ||
| 5.4 | 10 | 26.5 | 7.6 | 8.8 | 11.5 | 10.3 | 15.0uH, 20%, 26.5mOhm, 8.8A Max. SMD Power Bead | Data Sheet | ||
| 5.4 | 10 | 41 | 6 | 7.5 | 11.5 | 10.3 | 22.0uH, 20%, 41.0mOhm, 7.5A Max. SMD Power Bead | Data Sheet | ||
| 5.4 | 10 | 65.7 | 4.8 | 5.5 | 11.5 | 10.3 | 33.0uH, 20%, 65.7mOhm, 5.5A Max. SMD Power Bead | Data Sheet | ||
| 5.4 | 10 | 80 | 4.1 | 4.2 | 11.5 | 10.3 | 47.0uH, 20%, 80.0mOhm, 4.2A Max. SMD Power Bead | Data Sheet |
