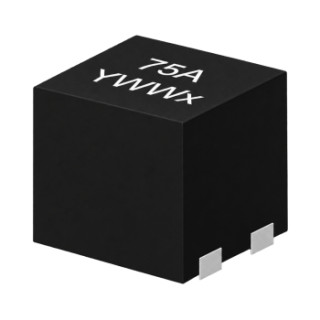

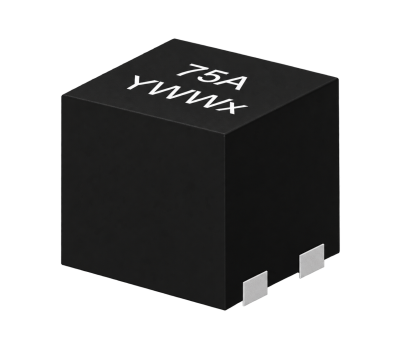

SMLA24246A Series
• 6.00 x 6.00 mm foot Print, 6.00mm Max. height SMD Molded Inductor for high frequency application, Operating frequency up to 5MHz.
• Inductance range from 35.0nH to 120.0nH. Custom values are welcomed.
• High saturation current characteristics by distributed gapped metal dust core.
• Ideal for portable device, Pad, E-reader and high density DC to DC Converter.
• Operating Temperature Range: -55˚C to 130˚C (ambient + self-temperature rise) .
• T & R Qtys: 800 pcs , 13'' Reel and Plastic tape: 16mm wide, 12mm pocket spacing.
| Part Number | Height (mm) Max | Inductance L (uH) | DCR @25℃ (mΩ) | Irms (A) @ΔT 40℃ | Isat10 (A) @25℃ Drop 30% | Dimension L (mm) Max | Dimension W (mm) Max | Description | Download |
|---|---|---|---|---|---|---|---|---|---|
| 6 | 0.1 | 0.15 | 60 | 70 | 6 | 6 | 0.1uH, 20%, 0.15mOhm, 70.0A Max. SMD Dual None Coupling Inductor | ||
| 6 | 0.035 | 0.15 | 60 | 58 | 6 | 6 | 0.12uH, 20%, 0.15mOhm, 58.0A Max. SMD Dual None Coupling Inductor | ||
| 6 | 0.035 | 0.15 | 60 | 200 | 6 | 6 | 0.035uH, 20%, 0.15mOhm, 200.0A Max. SMD Dual None Coupling Inductor | ||
| 6 | 0.07 | 0.15 | 60 | 100 | 6 | 6 | 0.07uH, 20%, 0.15mOhm, 100.0A Max. SMD Dual None Coupling Inductor | ||
| 6 | 0.075 | 0.15 | 60 | 89 | 6 | 6 | 0.075uH, 20%, 0.15mOhm, 89.0A Max. SMD Dual None Coupling Inductor | ||
| 6 | 0.08 | 0.15 | 60 | 89 | 6 | 6 | 0.08uH, 20%, 0.15mOhm, 89.0A Max. SMD Dual None Coupling Inductor |
