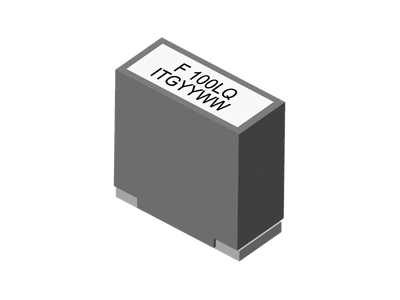

AFA41405Q Series
• AEC-Q200 Compliant .
• Ferrite based SMD inductor with lower core loss.
• Inductance range: 40.0 nH to 150.0 nH , custom values are welcomed.
• High current output chokes, up to 220.0 Amp with approx. 20% roll off.
• Low Profile 10.0mm typical Height .
• 10.2 x 4.8 mm Foot Print.
• Ideal for Buck Converter, VRM & High Density Board Design.
• Operating frequency of up to 5.0MHz.
• Operating temperature range of -55°C to + 130°C. RoHS & HF compliant.
• T & R Qty’s: 500pcs, 13'' Reel.
• Ferrite based SMD inductor with lower core loss.
• Inductance range: 40.0 nH to 150.0 nH , custom values are welcomed.
• High current output chokes, up to 220.0 Amp with approx. 20% roll off.
• Low Profile 10.0mm typical Height .
• 10.2 x 4.8 mm Foot Print.
• Ideal for Buck Converter, VRM & High Density Board Design.
• Operating frequency of up to 5.0MHz.
• Operating temperature range of -55°C to + 130°C. RoHS & HF compliant.
• T & R Qty’s: 500pcs, 13'' Reel.
| Part Number | Height (mm) Max | Inductance L (uH) | DCR @25℃ (mΩ) | Irms (A) @ΔT 40℃ | Isat2 (A) @25℃ Drop 20% | Dimension L (mm) Max | Dimension W (mm) Max | Description | Download | |
|---|---|---|---|---|---|---|---|---|---|---|
| 10 | 0.15 | 0.23 | 85 | 58 | 10.2 | 4.8 | 150.0nH, 15%, 0.23mOhm, 58.0A Max. SMD Power Bead | Data Sheet | ||
| 10 | 0.12 | 0.23 | 85 | 82 | 10.2 | 4.8 | 120.0nH, 15%, 0.23mOhm, 82.0A Max. SMD Power Bead | Data Sheet | ||
| 10 | 0.1 | 0.23 | 85 | 100 | 10.2 | 4.8 | 100.0nH, 15%, 0.23mOhm, 100.0A Max. SMD Power Bead | Data Sheet | ||
| 10 | 0.08 | 0.23 | 85 | 123 | 10.2 | 4.8 | 80.0nH, 15%, 123.0A Max. SMD Power Bead | Data Sheet | ||
| 10 | 0.07 | 0.23 | 85 | 145 | 10.2 | 4.8 | 70.0nH, 15%, 0.23mOhm, 145.0A Max. SMD Power Bead | Data Sheet | ||
| 10 | 0.05 | 0.23 | 85 | 190 | 10.2 | 4.8 | 50.0nH, 15%, 0.23mOhm, 190.0A Max. SMD Power Bead | Data Sheet | ||
| 10 | 0.045 | 0.23 | 85 | 210 | 10.2 | 4.8 | 45.0nH, 15%, 0.23mOhm, 210.0A Max. SMD Power Bead | Data Sheet | ||
| 10 | 0.04 | 0.23 | 85 | 220 | 10.2 | 4.8 | 40nH, 15%, 0.23mOhm, 220.0A Max. SMD Power Bead | Data Sheet |
