- SMD

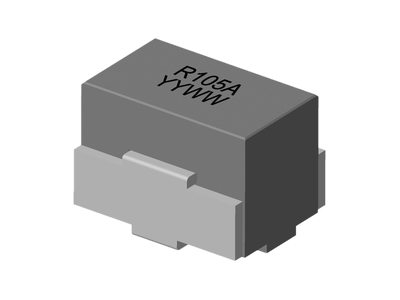

AH323211 Series
• Ferrite based SMD Inductor with lower core loss.
• Custom values are welcomed.
• High current output chokes, upto 74.0 Amp with approx. 20% roll off.
• Low Profile 8.30 mm Max. height .
• Foot Print 8.20 x 11.00 mm Max.
• Ideal for Buck Converter, VRM & High Density Board Design.
• Operating frequency up to 1 MHz application.
• Operating Temperature Range -55°C to + 130°C , RoHs & HF compliance.
• T & R Qtys: 300 pcs , 13'' Reel.
• Custom values are welcomed.
• High current output chokes, upto 74.0 Amp with approx. 20% roll off.
• Low Profile 8.30 mm Max. height .
• Foot Print 8.20 x 11.00 mm Max.
• Ideal for Buck Converter, VRM & High Density Board Design.
• Operating frequency up to 1 MHz application.
• Operating Temperature Range -55°C to + 130°C , RoHs & HF compliance.
• T & R Qtys: 300 pcs , 13'' Reel.
| Part Number | Height (mm) Max | Inductance L (uH) | DCR @25℃ (mΩ) | Irms (A) @ΔT 40℃ | Isat2 (A) @25℃ Drop 20% | Dimension L (mm) Max | Dimension W (mm) Max | Description | Download | |
|---|---|---|---|---|---|---|---|---|---|---|
| 8.3 | 0.105 | 0.05 | 91 | 74 | 8.2 | 11 | 0.105uH, 10%, 0.05mOhm, 74Amp Max. SMD Power bead | Data Sheet |
