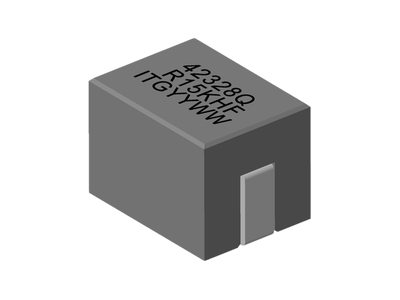

AH42328Q Series
• AEC-Q200 Compliant .
• Ferrite based SMD inductor with lower core loss.
• Inductance range: 100.0 nH to 300.0 nH , custom values are welcomed.
• High current output chokes, up to 115.0 Amp with approx. 20% roll off.
• Low Profile 8.0mm
• 7.9mm
• 7.8mm typical Height .
• 10.9 x 8.0 mm Foot Print.
• Ideal for Buck Converter, VRM & High Density Board Design.
• Operating frequency of up to 5.0MHz.
• Operating temperature range of -55°C to + 130°C. RoHS & HF compliant.
• T & R Qty’s: 450pcs, 13'' Reel.
• Ferrite based SMD inductor with lower core loss.
• Inductance range: 100.0 nH to 300.0 nH , custom values are welcomed.
• High current output chokes, up to 115.0 Amp with approx. 20% roll off.
• Low Profile 8.0mm
• 7.9mm
• 7.8mm typical Height .
• 10.9 x 8.0 mm Foot Print.
• Ideal for Buck Converter, VRM & High Density Board Design.
• Operating frequency of up to 5.0MHz.
• Operating temperature range of -55°C to + 130°C. RoHS & HF compliant.
• T & R Qty’s: 450pcs, 13'' Reel.
| Part Number | Height (mm) Max | Inductance L (uH) | DCR @25℃ (mΩ) | Irms (A) @ΔT 40℃ | Isat2 (A) @25℃ Drop 20% | Dimension L (mm) Max | Dimension W (mm) Max | Description | Download | |
|---|---|---|---|---|---|---|---|---|---|---|
| 7.8 | 0.3 | 0.18 | 73 | 33 | 8 | 10.6 | 300.0nH, 10%, 0.18mOhm, 33.0A Max. SMD Power Bead | Data Sheet | ||
| 7.8 | 0.27 | 0.18 | 73 | 37 | 8 | 10.6 | 270.0nH, 10%, 0.18mOhm, 37.0A Max. SMD Power Bead | Data Sheet | ||
| 7.8 | 0.22 | 0.18 | 73 | 58 | 8 | 10.6 | 220.0nH, 10%, 0.18mOhm, 58.0A Max. SMD Power Bead | Data Sheet | ||
| 7.8 | 0.18 | 0.18 | 73 | 66 | 8 | 10.6 | 180.0nH, 10%, 0.18mOhm, 66.0A Max. SMD Power Bead | Data Sheet | ||
| 7.8 | 0.17 | 0.18 | 73 | 71 | 8 | 10.6 | 170.0nH, 10%, 0.18mOhm, 71.0A Max. SMD Power Bead | Data Sheet | ||
| 7.8 | 0.15 | 0.18 | 73 | 81 | 8 | 10.6 | 150.0nH, 10%, 0.18mOhm, 81.0A Max. SMD Power Bead | Data Sheet | ||
| 7.9 | 0.12 | 0.18 | 73 | 100 | 8 | 10.6 | 120.0nH, 10%, 0.18mOhm, 100.0A Max. SMD Power Bead | Data Sheet | ||
| 8 | 0.1 | 0.18 | 73 | 115 | 8 | 10.6 | 100.0nH, 10%, 0.18mOhm, 115.0A Max. SMD Power Bead | Data Sheet |
