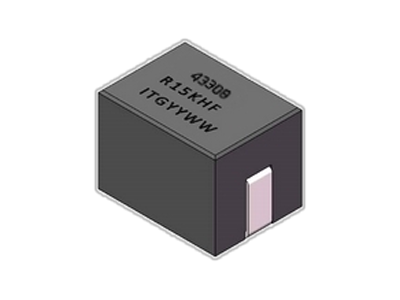

AH43308 Series
• Ferrite based SMD Inductor with lower core loss.
• Inductance Range: 170 nH to 370.0 nH. Custom values are welcomed.
• High current output chokes, upto 71.0 Amp with max. 20% roll off.
• Low Profile 7.50 mm Max. height.
• Foot Print 11.0 x 8.0 mm Max.
• Ideal for Buck Converter, VRM & High Density Board Design.
• Operating frequency up to 2.0 MHz application.
• Operating Temperature Range -55°C to + 130°C
• RoHS & HF compliant.
• Inductance Range: 170 nH to 370.0 nH. Custom values are welcomed.
• High current output chokes, upto 71.0 Amp with max. 20% roll off.
• Low Profile 7.50 mm Max. height.
• Foot Print 11.0 x 8.0 mm Max.
• Ideal for Buck Converter, VRM & High Density Board Design.
• Operating frequency up to 2.0 MHz application.
• Operating Temperature Range -55°C to + 130°C
• RoHS & HF compliant.
| Part Number | Height (mm) Max | Inductance L (uH) | DCR @25℃ (mΩ) | Irms (A) @ΔT 40℃ | Isat2 (A) @25℃ Drop 20% | Dimension L (mm) Max | Dimension W (mm) Max | Description | Download | |
|---|---|---|---|---|---|---|---|---|---|---|
| 7.5 | 0.37 | 0.29 | 48 | 26 | 11 | 8 | 0.37uH, 15%, 0.29mOhm, 26Amp Max. SMD Power bead | Data Sheet | ||
| 7.5 | 0.37 | 0.4 | 41 | 26 | 11 | 8 | 0.37uH, 15%, 0.4mOhm, 26Amp Max. SMD Power bead | Data Sheet | ||
| 7.5 | 0.37 | 0.48 | 37 | 26 | 11 | 8 | 0.37uH, 15%, 0.48mOhm, 26Amp Max. SMD Power bead | Data Sheet | ||
| 7.5 | 0.28 | 0.29 | 48 | 38 | 11 | 8 | 0.28uH, 15%, 0.29mOhm, 38Amp Max. SMD Power bead | Data Sheet | ||
| 7.5 | 0.28 | 0.4 | 41 | 38 | 11 | 8 | 0.28uH, 15%, 0.4mOhm, 38Amp Max. SMD Power bead | Data Sheet | ||
| 7.5 | 0.28 | 0.48 | 37 | 38 | 11 | 8 | 0.28uH, 15%, 0.48mOhm, 38Amp Max. SMD Power bead | Data Sheet | ||
| 7.5 | 0.215 | 0.29 | 48 | 52 | 11 | 8 | 0.215uH, 10%, 0.29mOhm, 52Amp Max. SMD Power bead | Data Sheet | ||
| 7.5 | 0.215 | 0.4 | 41 | 52 | 11 | 8 | 0.215uH, 10%, 0.4mOhm, 52Amp Max. SMD Power bead | Data Sheet | ||
| 7.5 | 0.215 | 0.48 | 37 | 52 | 11 | 8 | 0.215uH, 10%, 0.48mOhm, 52Amp Max. SMD Power bead | Data Sheet | ||
| 7.5 | 0.18 | 0.29 | 48 | 68 | 11 | 8 | 0.18uH, 10%, 0.29mOhm, 68Amp Max. SMD Power bead | Data Sheet | ||
| 7.5 | 0.18 | 0.4 | 41 | 68 | 11 | 8 | 0.18uH, 10%, 0.4mOhm, 68Amp Max. SMD Power bead | Data Sheet | ||
| 7.5 | 0.18 | 0.48 | 37 | 68 | 11 | 8 | 0.18uH, 10%, 0.48mOhm, 68Amp Max. SMD Power bead | Data Sheet | ||
| 7.5 | 0.17 | 0.29 | 48 | 71 | 11 | 8 | 0.17uH, 10%, 0.29mOhm, 71Amp Max. SMD Power bead | Data Sheet | ||
| 7.5 | 0.17 | 0.4 | 41 | 71 | 11 | 8 | 0.17uH, 10%, 0.4mOhm, 71Amp Max. SMD Power bead | Data Sheet | ||
| 7.5 | 0.17 | 0.48 | 37 | 71 | 11 | 8 | 0.17uH, 10%, 0.48mOhm, 71Amp Max. SMD Power bead | Data Sheet |
