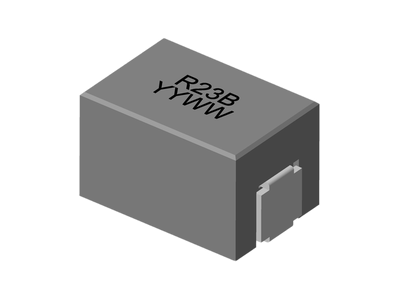

AH47308 Series
• Ferrite based SMD Inductor with lower core loss at high frequency application.
• Inductance Range:180nH to 230nH , Custom values are welcomed.
• High current output chokes, upto 71 Amp with max. 20% roll off.
• Low Profile 7.5mm Max. height.
• Foot Print 12.1 x 8.0 mm Max.
• Ideal for Buck Converter, VRM & High Density Board Design.
• Operating up to 2 MHz application.
• Operating Temperature Range -55°C to + 130°C.
• Inductance Range:180nH to 230nH , Custom values are welcomed.
• High current output chokes, upto 71 Amp with max. 20% roll off.
• Low Profile 7.5mm Max. height.
• Foot Print 12.1 x 8.0 mm Max.
• Ideal for Buck Converter, VRM & High Density Board Design.
• Operating up to 2 MHz application.
• Operating Temperature Range -55°C to + 130°C.
| Part Number | Height (mm) Max | Inductance L (uH) | DCR @25℃ (mΩ) | Irms (A) @ΔT 40℃ | Isat2 (A) @25℃ Drop 20% | Dimension L (mm) Max | Dimension W (mm) Max | Description | Download |
|---|---|---|---|---|---|---|---|---|---|
| 7.5 | 0.23 | 0.4 | 46 | 54 | 12.1 | 8 | 0.23uH, 10%, 0.4mOhm, 54Amp Max. SMD Power bead | Data Sheet | |
| 7.5 | 0.23 | 0.48 | 42 | 54 | 12.1 | 8 | 0.23uH, 10%, 0.48mOhm, 54Amp Max. SMD Power bead | Data Sheet | |
| 7.5 | 0.23 | 0.29 | 54 | 54 | 12.1 | 8 | 0.23uH, 10%, 0.29mOhm, 54Amp Max. SMD Power bead | Data Sheet | |
| 7.5 | 0.21 | 0.4 | 46 | 64 | 12.1 | 8 | 0.21uH, 10%, 0.4mOhm, 64Amp Max. SMD Power bead | Data Sheet | |
| 7.5 | 0.21 | 0.48 | 42 | 64 | 12.1 | 8 | 0.21uH, 10%, 0.48mOhm, 64Amp Max. SMD Power bead | Data Sheet | |
| 7.5 | 0.21 | 0.29 | 54 | 64 | 12.1 | 8 | 0.21uH, 10%, 0.29mOhm, 64Amp Max. SMD Power bead | Data Sheet | |
| 7.5 | 0.18 | 0.4 | 46 | 71 | 12.1 | 8 | 0.18uH, 10%, 0.4mOhm, 71Amp Max. SMD Power bead | Data Sheet | |
| 7.5 | 0.18 | 0.48 | 42 | 71 | 12.1 | 8 | 0.18uH, 10%, 0.48mOhm, 71Amp Max. SMD Power bead | Data Sheet | |
| 7.5 | 0.18 | 0.29 | 54 | 71 | 12.1 | 8 | 0.18uH, 10%, 0.29mOhm, 71Amp Max. SMD Power bead | Data Sheet |
