- SMD

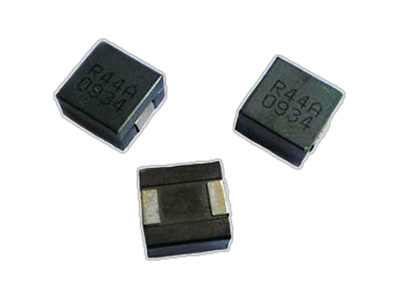

AH4731 Series
• Ferrite based SMD inductor with lower core loss.
• Inductance: 180.0 nH, custom values are welcomed.
• High current output chokes of up to 76.0 Amp with approx. 20% roll off.
• Low profile 7.90 mm maximum height.
• 12.30 x 10.00 mm foot print.
• Ideal for Buck Converter, VRM & High Density Board Design.
• Operating frequency of up to 5.0 MHz.
• Operating temperature range of -55°C to + 130°C.
• T & R Qty’s: 500pcs, 13'' Reel. RoHS & HF compliant.
• Inductance: 180.0 nH, custom values are welcomed.
• High current output chokes of up to 76.0 Amp with approx. 20% roll off.
• Low profile 7.90 mm maximum height.
• 12.30 x 10.00 mm foot print.
• Ideal for Buck Converter, VRM & High Density Board Design.
• Operating frequency of up to 5.0 MHz.
• Operating temperature range of -55°C to + 130°C.
• T & R Qty’s: 500pcs, 13'' Reel. RoHS & HF compliant.
| Part Number | Height (mm) Max | Inductance L (uH) | DCR @25℃ (mΩ) | Irms (A) @ΔT 40℃ | Isat2 (A) @25℃ Drop 20% | Dimension L (mm) Max | Dimension W (mm) Max | Description | Download | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 7.9 | 0.18 | 0.29 | 54 | 76 | 12.3 | 10 | 0.18uH, 10%, 0.29mOhm, 76Amp Max. SMD Power bead | Data Sheet | Data Sheet |
