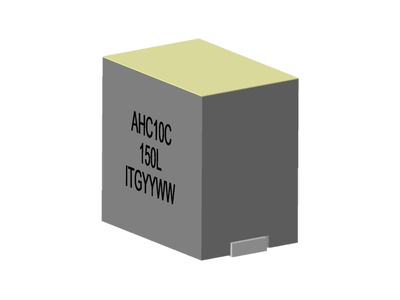

AHC10C Series
• Ferrite based SMD inductor with lower core loss.
• Inductance Range: 100.0nH to 330.0nH, Custom values are welcomed.
• High current output chokes, up to 115.0 Amp with approx. 20% roll off.
• Low Profile 10.0mm Max. height .
• Foot Print 10.0 x 7.0mm max.
• Perfect for high density designs with limited board space.
• Operating frequency up to 5.0 MHz application.
• Operating Temperature Range -55°C to + 130°C , RoHs & HF compliant.
• T & R Qtys: 400 pcs , 13'' Reel.
• Inductance Range: 100.0nH to 330.0nH, Custom values are welcomed.
• High current output chokes, up to 115.0 Amp with approx. 20% roll off.
• Low Profile 10.0mm Max. height .
• Foot Print 10.0 x 7.0mm max.
• Perfect for high density designs with limited board space.
• Operating frequency up to 5.0 MHz application.
• Operating Temperature Range -55°C to + 130°C , RoHs & HF compliant.
• T & R Qtys: 400 pcs , 13'' Reel.
| Part Number | Height (mm) Max | Inductance L (uH) | DCR @25℃ (mΩ) | Isat2 (A) @25℃ Drop 20% | Dimension L (mm) Max | Dimension W (mm) Max | Description | Download | |
|---|---|---|---|---|---|---|---|---|---|
| 10 | 0.33 | 0.185 | 43 | 10 | 7 | 0.33uH, 15%, 0.185mOhm, 43Amp Max. SMD Power bead | Data Sheet | ||
| 10 | 0.27 | 0.185 | 46 | 10 | 7 | 0.27uH, 15%, 0.185mOhm, 46Amp Max. SMD Power bead | Data Sheet | ||
| 10 | 0.22 | 0.185 | 56 | 10 | 7 | 0.22uH, 15%, 0.185mOhm, 56Amp Max. SMD Power bead | Data Sheet | ||
| 10 | 0.18 | 0.185 | 70 | 10 | 7 | 0.18uH, 15%, 0.185mOhm, 70Amp Max. SMD Power bead | Data Sheet | ||
| 10 | 0.15 | 0.185 | 80 | 10 | 7 | 0.15uH, 15%, 0.185mOhm, 80Amp Max. SMD Power bead | Data Sheet | ||
| 10 | 0.12 | 0.185 | 95 | 10 | 7 | 0.12uH, 15%, 0.185mOhm, 95Amp Max. SMD Power bead | Data Sheet | ||
| 10 | 0.1 | 0.185 | 115 | 10 | 7 | 0.1uH, 15%, 0.185mOhm, 115Amp Max. SMD Power bead | Data Sheet |
