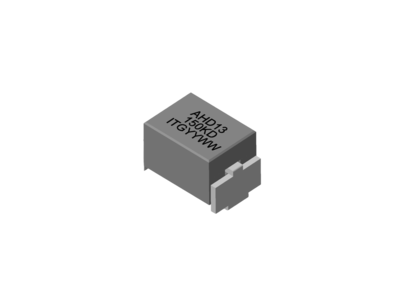

AHD13D Series
• Ferrite based SMD Inductor with lower core loss.
• Inductance Range: 105.0 nH to 330.0 nH. Custom values are welcomed.
• High current output chokes, up to 100.0 Amps with approx. 20% roll off.
• Low Profile 9.00 mm Max. height.
• 12.80 x 8.30 mm Foot Print.
• Perfect for high density designs with limited board space.
• Saves 50% of application board area when compared to standard design approach.
• Operating frequency up to 5.0 MHz.
• Operating Temperature Range -55°C to + 130°C.
• T & R Qtys: 450 pcs, 13'' Reel. RoHs & HF compliant.
• Inductance Range: 105.0 nH to 330.0 nH. Custom values are welcomed.
• High current output chokes, up to 100.0 Amps with approx. 20% roll off.
• Low Profile 9.00 mm Max. height.
• 12.80 x 8.30 mm Foot Print.
• Perfect for high density designs with limited board space.
• Saves 50% of application board area when compared to standard design approach.
• Operating frequency up to 5.0 MHz.
• Operating Temperature Range -55°C to + 130°C.
• T & R Qtys: 450 pcs, 13'' Reel. RoHs & HF compliant.
| Part Number | Height (mm) Max | Inductance L (uH) | DCR @25℃ (mΩ) | Irms (A) @ΔT 40℃ | Isat2 (A) @25℃ Drop 20% | Dimension L (mm) Max | Dimension W (mm) Max | Description | Download | |
|---|---|---|---|---|---|---|---|---|---|---|
| 9 | 0.18 | 0.16 | 72 | 65 | 12.8 | 8.3 | 0.18uH, 10%, 0.155mOhm, 65Amp Max. SMD Power bead | Data Sheet | ||
| 9 | 0.15 | 0.16 | 72 | 80 | 12.8 | 8.3 | 0.15uH, 10%, 0.155mOhm, 80Amp Max. SMD Power bead | Data Sheet | ||
| 9 | 0.12 | 0.16 | 72 | 100 | 12.8 | 8.3 | 0.12uH, 10%, 0.155mOhm, 100Amp Max. SMD Power bead | Data Sheet |
