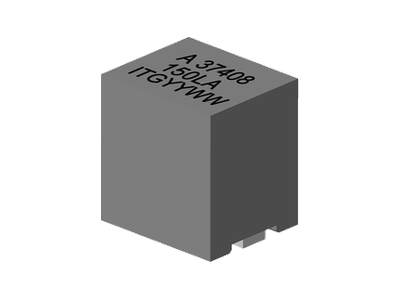

AHR37408 Series
• Low Audio Noise Ferrite based SMD Box inductor.
• Inductance range: 70.0nH up to 150.0nH, custom values are welcomed
• High current output chokes up to 170.0 Amp with approx. 20% roll off.
• Low profile 10.00mm max height.
• 9.41 x 8.00mm max. Foot Print.
• Idea for Graphic Card, GPU’s current output chokes applications.
• Operating frequency of up to 5.0MHz.
• Operating temperature range of -55°C to + 130°C
• RoHS & HF compliant.
• T & R Qty’s: 400pcs, 13'' Reel.
• Inductance range: 70.0nH up to 150.0nH, custom values are welcomed
• High current output chokes up to 170.0 Amp with approx. 20% roll off.
• Low profile 10.00mm max height.
• 9.41 x 8.00mm max. Foot Print.
• Idea for Graphic Card, GPU’s current output chokes applications.
• Operating frequency of up to 5.0MHz.
• Operating temperature range of -55°C to + 130°C
• RoHS & HF compliant.
• T & R Qty’s: 400pcs, 13'' Reel.
| Part Number | Height (mm) Max | Inductance L (uH) | DCR @25℃ (mΩ) | Irms (A) @ΔT 40℃ | Isat2 (A) @25℃ Drop 20% | Dimension L (mm) Max | Dimension W (mm) Max | Description | Download | |
|---|---|---|---|---|---|---|---|---|---|---|
| 10 | 0.15 | 0.16 | 78 | 9.41 | 8 | 150nH, 15%, 0.16mOhm, 78A MAX. SMD Power Bead | Data Sheet | |||
| 10 | 0.12 | 0.16 | 94 | 9.41 | 8 | 120nH, 15%, 0.16mOhm, 94A MAX. SMD Power Bead | Data Sheet | |||
| 10 | 0.1 | 0.16 | 66 | 114 | 9.41 | 8 | 100nH, 15%, 0.16mOhm, 114 A Max. Power Bead SMD | Data Sheet | ||
| 10 | 0.09 | 0.16 | 66 | 120 | 9.41 | 8 | 90nH, 15%, 0.16mOhm, 120A Max. Power Bead SMD | Data Sheet | ||
| 10 | 0.07 | 0.16 | 66 | 170 | 9.41 | 8 | 70nH, 15%, 0.16mOhm, 140A Max. Power Bead SMD | Data Sheet |
