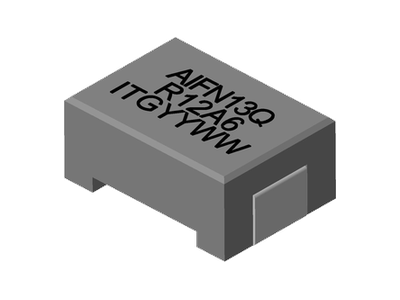

AIFN13Q Series
• Designed for use with Infineon® DrBlade.
• Ferrite based SMD inductor with lower core loss.
• Inductance range: 105.00 nH to 150.00 nH, custom values are welcomed.
• High current output chokes, up to 47.00 Amp with approx. 20% roll off.
• Low profile 4.20 mm Max. height.
• 9.40 x 6.70 mm Foot Print.
• Perfect for high density designs with limited board space.
• Saves 50% of application board area when compared to standard design approach.
• Operating frequency up to 2.0 MHz.
• Operating Temperature Range -55°C to + 130°C , RoHs & HF compliant.
• T & R Qtys: 1200 pcs , 13'' Reel.
• Ferrite based SMD inductor with lower core loss.
• Inductance range: 105.00 nH to 150.00 nH, custom values are welcomed.
• High current output chokes, up to 47.00 Amp with approx. 20% roll off.
• Low profile 4.20 mm Max. height.
• 9.40 x 6.70 mm Foot Print.
• Perfect for high density designs with limited board space.
• Saves 50% of application board area when compared to standard design approach.
• Operating frequency up to 2.0 MHz.
• Operating Temperature Range -55°C to + 130°C , RoHs & HF compliant.
• T & R Qtys: 1200 pcs , 13'' Reel.
| Part Number | Height (mm) Max | Inductance L (uH) | DCR @25℃ (mΩ) | Irms (A) @ΔT 40℃ | Isat2 (A) @25℃ Drop 20% | Dimension L (mm) Max | Dimension W (mm) Max | Description | Download | |
|---|---|---|---|---|---|---|---|---|---|---|
| 4.2 | 0.15 | 0.35 | 33 | 32 | 9.4 | 6.7 | 0.15uH, 20%, 0.35mOhm, 32Amp Max. SMD Ferrite Inductor | Data Sheet | ||
| 4.2 | 0.125 | 0.35 | 33 | 38 | 9.4 | 6.7 | 0.125uH, 20%, 0.35mOhm, 38Amp Max. SMD Ferrite Inductor | Data Sheet | ||
| 4.2 | 0.105 | 0.35 | 33 | 47 | 9.4 | 6.7 | 0.105uH, 20%, 0.35mOhm, 47Amp Max. SMD Ferrite Inductor | Data Sheet |
