- SMD

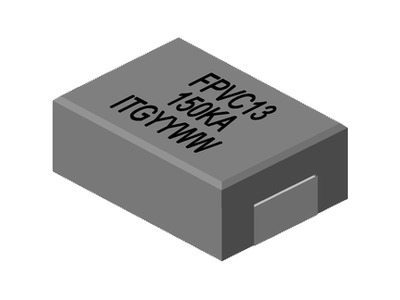

FPVC13A Series
• T & R Qtys: 1200 pcs , 13'' Reel.
• Operating Temperature Range -55°C to + 130°C.
• Rohs and HF Compliance Component.
• Operating Temperature Range -55°C to + 130°C.
• Rohs and HF Compliance Component.
| Part Number | Height (mm) Max | Inductance L (uH) | DCR @25℃ (mΩ) | Irms (A) @ΔT 40℃ | Isat2 (A) @25℃ Drop 20% | Dimension L (mm) Max | Dimension W (mm) Max | Description | Download | |
|---|---|---|---|---|---|---|---|---|---|---|
| 4 | 0.15 | 0.32 | 32 | 32 | 9.4 | 6.7 | 0.15uH, 10%, 0.32mOhm, 32Amp Max. SMD Power Bead | Data Sheet | ||
| 4 | 0.1 | 0.32 | 32 | 47 | 9.4 | 6.7 | 0.1uH, 10%, 0.32mOhm, 47Amp Max. SMD Power Bead | Data Sheet | ||
| 4 | 0.08 | 0.32 | 32 | 58 | 9.4 | 6.7 | 0.08uH, 10%, 0.32mOhm, 58Amp Max. SMD Power Bead | Data Sheet |
