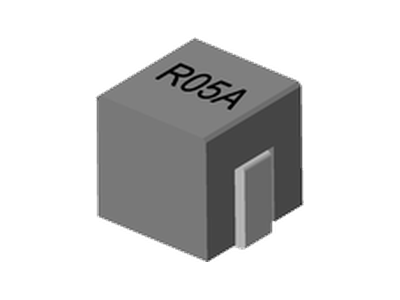

SL1617 Series
• Ferrite based SMD Inductor with lower core loss.
• Inductance Range:50nH to 65nH , Custom values are welcomed.
• High current output chokes, upto 29.0 Amp with approx. 20% roll off.
• Low Profile 4.40mm Max. Height.
• 4.30 x 4.00mm foot print.
• Ideal for Buck Converter, VRM & High Density Board Design.
• Operating frequency up to 1 MHz application.
• Operating Temperature Range -55°C to + 130°C , RoHs & HF compliance.
• T & R Qtys: 1700 pcs , 13'' Reel.
• Inductance Range:50nH to 65nH , Custom values are welcomed.
• High current output chokes, upto 29.0 Amp with approx. 20% roll off.
• Low Profile 4.40mm Max. Height.
• 4.30 x 4.00mm foot print.
• Ideal for Buck Converter, VRM & High Density Board Design.
• Operating frequency up to 1 MHz application.
• Operating Temperature Range -55°C to + 130°C , RoHs & HF compliance.
• T & R Qtys: 1700 pcs , 13'' Reel.
| Part Number | Height (mm) Max | Inductance L (uH) | DCR @25℃ (mΩ) | Irms (A) @ΔT 40℃ | Isat2 (A) @25℃ Drop 20% | Dimension L (mm) Max | Dimension W (mm) Max | Description | Download | |
|---|---|---|---|---|---|---|---|---|---|---|
| 4.4 | 0.065 | 0.2 | 26 | 26 | 4.3 | 4 | 0.065uH, 15%, 0.2mOhm, 26Amp Max. SMD Power bead | Data Sheet | ||
| 4.4 | 0.05 | 0.2 | 26 | 29 | 4.3 | 4 | 0.05uH, 15%, 0.2mOhm, 29Amp Max. SMD Power bead | Data Sheet |
