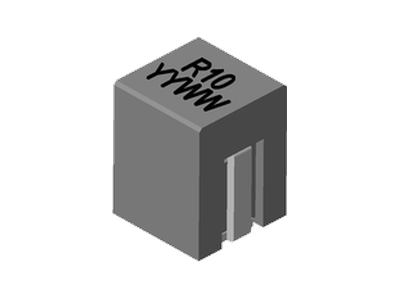

SL2026 Series

• Ferrite based SMD Inductor with lower core loss.
• Inductance Range:50.0nH to 200.0nH. Custom values are welcomed.
• High current output chokes, upto 72.0 Amp approx. 20% roll off.
• Low Profile 6.60mm Max. height.
• Foot Print 5.20 x 5.00 mm Max.
• Ideal for Buck Converter, VRM & High Density Board Design.
• Operating frequency up to 1 MHz application.
• Operating Temperature Range -55°C to + 130°C , RoHs & HF compliance.
• T & R Qtys: 800 pcs , 13'' Reel.

Data Sheet

Specification of SL2026 Series

Library Sample Quotation Question

Part Number	Height (mm) Max	Inductance L (uH)	DCR @25℃ (mΩ)	Irms (A) @ΔT 40℃	Isat2 (A) @25℃ Drop 20%	Dimension L (mm) Max	Dimension W (mm) Max	Description	Download
SL2026B-R20MHF	6.6	0.2	0.27		16	5.2	5	0.2uH, 20%, 0.27mOhm, 16Amp Max. SMD Power bead	Data Sheet	3D Step File
SL2026B-R15MHF	6.6	0.15	0.27		22	5.2	5	0.15uH, 20%, 0.27mOhm, 22Amp Max. SMD Power bead	Data Sheet	3D Step File
SL2026-R15MHF	6.6	0.15	0.47		22	5.2	5	0.15uH, 20%, 0.47mOhm, 20Amp Max. SMD Power bead	Data Sheet	3D Step File
SL2026B-R11MHF	6.6	0.11	0.27	53	32	5.2	5	0.11uH, 20%, 0.27mOhm, 32Amp Max. SMD Power bead	Data Sheet	3D Step File
SL2026B-R10MHF	6.6	0.1	0.27	53	35	5.2	5	0.1uH, 20%, 0.27mOhm, 35Amp Max. SMD Power bead	Data Sheet	3D Step File	3D Step File
SL2026-R10MHF	6.6	0.1	0.47	40	35	5.2	5	0.1uH, 20%, 0.47mOhm, 35Amp Max. SMD Power bead	Data Sheet	3D Step File
SL2026B-R08LHF	6.6	0.08	0.27		52	5.2	5	80nH, 15%, 0.27mOhm, 52A Max. SMD Power Bead	Data Sheet	3D Step File
SL2026-R08LHF	6.6	0.08	0.47	40	52	5.2	5	0.08uH, 15%, 0.47mOhm, 52Amp Max. SMD Power bead	Data Sheet	3D Step File
SL2026B-R07LHF	6.6	0.07	0.27	53	60	5.2	5	0.07uH, 15%, 0.27mOhm, 60Amp Max. SMD Power bead	Data Sheet	3D Step File	3D Step File
SL2026-R055LHF	6.6	0.055	0.47	40	68	5.2	5	0.055uH, 15%, 0.47mOhm, 68Amp Max. SMD Power bead	Data Sheet	3D Step File
SL2026B-R05LHF	6.6	0.05	0.27	53	72	5.2	5	0.05uH, 15%, 0.27mOhm, 72Amp Max. SMD Power bead	Data Sheet	3D Step File
