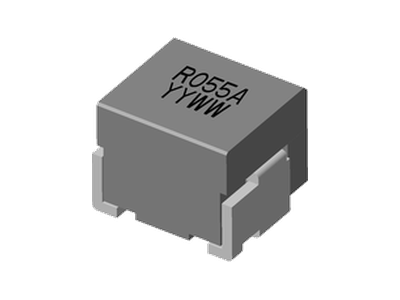

SL2420 Series
• Ferrite based SMD Inductor with lower core loss.
• Inductance Range:55.0nH to 80.0nH , Custom values are welcomed.
• High current output chokes, upto 70.0 Amp with approx. 20% roll off.
• Low Profile 5.00mm
• 5.1mm typical Height.
• 6.0 x 6.0mm foot print.
• Ideal for Buck Converter, VRM & High Density Board Design.
• Operating frequency up to 1 MHz application.
• Operating Temperature Range -55°C to + 130°C , RoHs & HF compliance.
• T & R Qtys: 900 pcs , 13'' Reel.
• Inductance Range:55.0nH to 80.0nH , Custom values are welcomed.
• High current output chokes, upto 70.0 Amp with approx. 20% roll off.
• Low Profile 5.00mm
• 5.1mm typical Height.
• 6.0 x 6.0mm foot print.
• Ideal for Buck Converter, VRM & High Density Board Design.
• Operating frequency up to 1 MHz application.
• Operating Temperature Range -55°C to + 130°C , RoHs & HF compliance.
• T & R Qtys: 900 pcs , 13'' Reel.
| Part Number | Height (mm) Max | Inductance L (uH) | DCR @25℃ (mΩ) | Irms (A) @ΔT 40℃ | Isat2 (A) @25℃ Drop 20% | Dimension L (mm) Max | Dimension W (mm) Max | Description | Download | |
|---|---|---|---|---|---|---|---|---|---|---|
| 5 | 0.08 | 0.2 | 36 | 50 | 6 | 6 | 0.08uH, 15%, 0.2mOhm, 50Amp Max. SMD Power bead | Data Sheet | ||
| 5.1 | 0.055 | 0.2 | 36 | 73 | 6 | 6 | 0.055uH, 15%, 0.2mOhm, 73Amp Max. SMD Power bead | Data Sheet |
