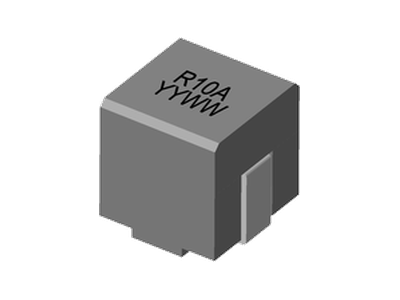

SL25266 Series
• Ferrite based SMD Inductor with lower core loss.
• Inductance Range:100nH to 200nH , Custom values are welcomed.
• High current output chokes, upto 53.0 Amp with approx. 20% roll off.
• Low Profile 6.50mm Max. height.
• Foot Print 6.20 x 6.20 mm Max.
• Ideal for Buck Converter, VRM & High Density Board Design.
• Operating frequency up to 1 MHz application.
• Operating Temperature Range -55°C to + 130°C , RoHs & HF compliance.
• T & R Qtys: 800 pcs , 13'' Reel.
• Inductance Range:100nH to 200nH , Custom values are welcomed.
• High current output chokes, upto 53.0 Amp with approx. 20% roll off.
• Low Profile 6.50mm Max. height.
• Foot Print 6.20 x 6.20 mm Max.
• Ideal for Buck Converter, VRM & High Density Board Design.
• Operating frequency up to 1 MHz application.
• Operating Temperature Range -55°C to + 130°C , RoHs & HF compliance.
• T & R Qtys: 800 pcs , 13'' Reel.
| Part Number | Height (mm) Max | Inductance L (uH) | DCR @25℃ (mΩ) | Irms (A) @ΔT 40℃ | Isat2 (A) @25℃ Drop 20% | Dimension L (mm) Max | Dimension W (mm) Max | Description | Download | |
|---|---|---|---|---|---|---|---|---|---|---|
| 6.5 | 0.2 | 0.23 | 35 | 25 | 6.2 | 6.2 | 0.2uH, 20%, 0.23mOhm, 25Amp Max. SMD Power bead | Data Sheet | ||
| 6.5 | 0.1 | 0.23 | 35 | 53 | 6.2 | 6.2 | 0.1uH, 15%, 0.23mOhm, 53Amp Max. SMD Power bead | Data Sheet |
