- SMD

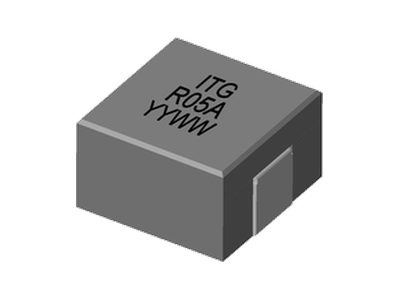

SL2818A Series
• T & R Qtys: 1000 pcs , 13'' Reel.
• Operating Temperature Range -55°C to + 130°C.
• Rohs and HF Compliance Component.
• Operating frequency up to 5.0 MHz.
• Operating Temperature Range -55°C to + 130°C.
• Rohs and HF Compliance Component.
• Operating frequency up to 5.0 MHz.
| Part Number | Height (mm) Max | Inductance L (uH) | DCR @25℃ (mΩ) | Irms (A) @ΔT 40℃ | Isat2 (A) @25℃ Drop 20% | Dimension L (mm) Max | Dimension W (mm) Max | Description | Download | |
|---|---|---|---|---|---|---|---|---|---|---|
| 4.49 | 0.05 | 0.25 | 48 | 75 | 7 | 7 | 0.05uH, 15%, 0.25mOhm, 75Amp Max. SMD Power bead | Data Sheet |
