- SMD

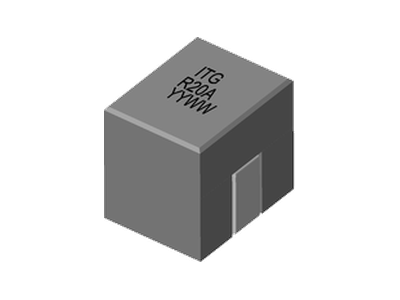

SL28328 Series
• Ferrite based SMD inductor with lower core loss.
• Inductance range: 72.0 nH to 250.0 nH , custom values are welcomed.
• High current output chokes,up to 108.0 Amp with approx. 20% roll off.
• Low Profile 8.00 mm max height.
• 7.00 x 8.50 mm Foot Print.
• Ideal for Buck Converter, VRM & High Density Board Design.
• Operating frequency of up to 5.0MHz.
• Operating temperature range of -55°C to + 130°C. RoHS & HF compliant.
• T & R Qty’s: 600pcs, 13'' Reel.
• Inductance range: 72.0 nH to 250.0 nH , custom values are welcomed.
• High current output chokes,up to 108.0 Amp with approx. 20% roll off.
• Low Profile 8.00 mm max height.
• 7.00 x 8.50 mm Foot Print.
• Ideal for Buck Converter, VRM & High Density Board Design.
• Operating frequency of up to 5.0MHz.
• Operating temperature range of -55°C to + 130°C. RoHS & HF compliant.
• T & R Qty’s: 600pcs, 13'' Reel.
| Part Number | Height (mm) Max | Inductance L (uH) | DCR @25℃ (mΩ) | Irms (A) @ΔT 40℃ | Isat2 (A) @25℃ Drop 20% | Dimension L (mm) Max | Dimension W (mm) Max | Description | Download | |
|---|---|---|---|---|---|---|---|---|---|---|
| 8 | 0.25 | 0.35 | 45 | 36 | 7 | 8.5 | 0.25uH, 15%, 0.35mOhm, 36Amp Max. SMD Power bead | Data Sheet | ||
| 8 | 0.21 | 0.35 | 45 | 40 | 7 | 8.5 | 0.21uH, 10%, 0.35mOhm, 40Amp Max. SMD Power bead | Data Sheet | ||
| 8 | 0.2 | 0.35 | 45 | 42 | 7 | 8.5 | 0.2uH, 10%, 0.35mOhm, 42Amp Max. SMD Power bead | Data Sheet | ||
| 8 | 0.15 | 0.35 | 45 | 65 | 7 | 8.5 | 0.15uH, 10%, 0.35mOhm, 65Amp Max. SMD Power bead | Data Sheet | ||
| 8 | 0.13 | 0.35 | 45 | 74 | 7 | 8.5 | 0.13uH, 10%, 0.35mOhm, 74Amp Max. SMD Power bead | Data Sheet | ||
| 8 | 0.115 | 0.35 | 45 | 83 | 7 | 8.5 | 0.115uH, 10%, 0.35mOhm, 83Amp Max. SMD Power bead | Data Sheet | ||
| 8 | 0.09 | 0.35 | 45 | 85 | 7 | 8.5 | 0.09uH, 10%, 0.35mOhm, 85Amp Max. SMD Power bead | Data Sheet | ||
| 8 | 0.072 | 0.35 | 45 | 108 | 7 | 8.5 | 0.072uH, 10%, 0.35mOhm, 108Amp Max. SMD Power bead | Data Sheet |
