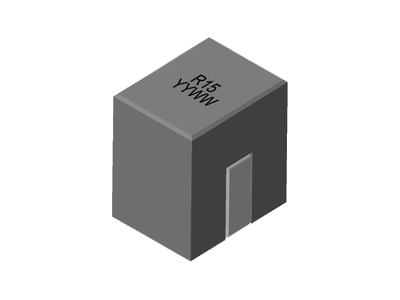

SL28409 Series
• Ferrite based SMD inductor with lower core loss.
• Inductance Range:120nH to 180nH. Custom values are welcomed.
• High current output chokes, up to 75 Amp with approx. 20% roll off.
• Low Profile 10.0mm Max. height.
• Foot Print 7.2 x 9.0 mm Max.
• Ideal for Buck Converter, VRM & High Density Board Design.
• Operating frequency up to 1.0 MHz.
• Operating Temperature Range -55°C to + 130°C, RoHs & HF compliant.
• T & R Qtys: TBD pcs , 13'' Reel.
• Inductance Range:120nH to 180nH. Custom values are welcomed.
• High current output chokes, up to 75 Amp with approx. 20% roll off.
• Low Profile 10.0mm Max. height.
• Foot Print 7.2 x 9.0 mm Max.
• Ideal for Buck Converter, VRM & High Density Board Design.
• Operating frequency up to 1.0 MHz.
• Operating Temperature Range -55°C to + 130°C, RoHs & HF compliant.
• T & R Qtys: TBD pcs , 13'' Reel.
| Part Number | Height (mm) Max | Inductance L (uH) | DCR @25℃ (mΩ) | Irms (A) @ΔT 40℃ | Isat2 (A) @25℃ Drop 20% | Dimension L (mm) Max | Dimension W (mm) Max | Description | Download | |
|---|---|---|---|---|---|---|---|---|---|---|
| 10 | 0.18 | 0.18 | 65 | 48 | 9 | 7.2 | 0.18uH, 10%, 0.18mOhm, 48Amp Max. SMD Power bead | Data Sheet | ||
| 10 | 0.15 | 0.18 | 65 | 58 | 9 | 7.2 | 0.15uH, 10%, 0.18mOhm, 58Amp Max. SMD Power bead | Data Sheet | ||
| 10 | 0.12 | 0.18 | 65 | 75 | 9 | 7.2 | 0.12uH, 10%, 0.18mOhm, 75Amp Max. SMD Power bead | Data Sheet |
