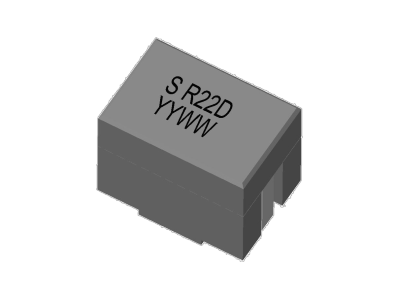

SL3732D Series
• Ferrite based SMD Inductor with lower core loss.
• Custom values are welcomed.
• High current output chokes, upto 38 Amp with approx. 20% roll off.
• Low Profile 8.0mm Max. height.
• Foot Print 9.6 x 6.4 mm Max.
• Ideal for Buck Converter, VRM & High Density Board Design.
• Operating frequency up to 1 MHz application.
• Operating Temperature Range -55°C to + 130°C , RoHs & HF compliance.
• T & R Qtys: 650 pcs , 13'' Reel.
• Custom values are welcomed.
• High current output chokes, upto 38 Amp with approx. 20% roll off.
• Low Profile 8.0mm Max. height.
• Foot Print 9.6 x 6.4 mm Max.
• Ideal for Buck Converter, VRM & High Density Board Design.
• Operating frequency up to 1 MHz application.
• Operating Temperature Range -55°C to + 130°C , RoHs & HF compliance.
• T & R Qtys: 650 pcs , 13'' Reel.
| Part Number | Height (mm) Max | Inductance L (uH) | DCR @25℃ (mΩ) | Irms (A) @ΔT 40℃ | Isat2 (A) @25℃ Drop 20% | Dimension L (mm) Max | Dimension W (mm) Max | Description | Download | |
|---|---|---|---|---|---|---|---|---|---|---|
| 8 | 0.22 | 0.8 | 28.5 | 38 | 9.6 | 6.4 | 0.22uH, 10%, 0.8mOhm, 38Amp Max. SMD Power bead | Data Sheet |
