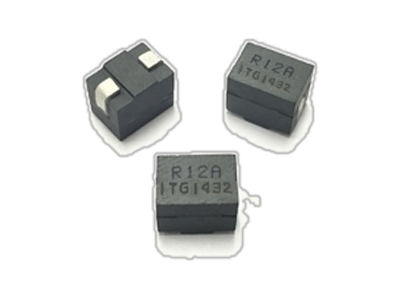

SL3933 Series
• Ferrite based SMD inductor with lower core loss.
• Inductance Range: 65.0nH to 150.0nH. Custom values are welcomed.
• High current output chokes, up to 145.0 Amp with approx. 20% roll off.
• Low profile 8.50mm Max. height.
• Foot Print 10.00 x 6.40 mm Max.
• Ideal for Buck Converter, VRM & High Density Board Design.
• Operating frequency up to 1.0 MHz.
• Operating Temperature Range -55°C to + 130°C , RoHs & HF compliant.
• T & R Qtys: 550 pcs , 13'' Reel.
• Inductance Range: 65.0nH to 150.0nH. Custom values are welcomed.
• High current output chokes, up to 145.0 Amp with approx. 20% roll off.
• Low profile 8.50mm Max. height.
• Foot Print 10.00 x 6.40 mm Max.
• Ideal for Buck Converter, VRM & High Density Board Design.
• Operating frequency up to 1.0 MHz.
• Operating Temperature Range -55°C to + 130°C , RoHs & HF compliant.
• T & R Qtys: 550 pcs , 13'' Reel.
| Part Number | Height (mm) Max | Inductance L (uH) | DCR @25℃ (mΩ) | Irms (A) @ΔT 40℃ | Isat2 (A) @25℃ Drop 20% | Dimension L (mm) Max | Dimension W (mm) Max | Description | Download | |
|---|---|---|---|---|---|---|---|---|---|---|
| 8.5 | 0.15 | 0.2 | 61 | 64 | 10 | 6.4 | 0.15uH, 10%, 0.2mOhm, 64Amp Max. SMD Power bead | Data Sheet | ||
| 8.5 | 0.12 | 0.2 | 61 | 81 | 10 | 6.4 | 0.12uH, 10%, 0.2mOhm, 81Amp Max. SMD Power bead | Data Sheet | ||
| 8.5 | 0.095 | 0.2 | 61 | 105 | 10 | 6.4 | 0.095uH, 10%, 0.2mOhm, 105Amp Max. SMD Power bead | Data Sheet | ||
| 8.5 | 0.065 | 0.2 | 61 | 145 | 10 | 6.4 | 0.065uH, 15%, 0.2mOhm, 145Amp Max. SMD Power bead | Data Sheet |
