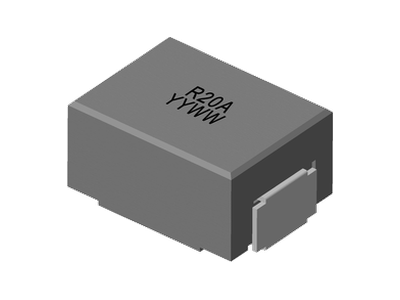

SL4018 Series
• Ferrite based SMD Inductor with lower core loss.
• Inductance Range:90nH to 300nH. Custom values are welcomed.
• High current output chokes, upto 72+ Amp with max. 20% roll off.
• Low Profile 5.0mm Max. height.
• Foot Print 10.0 x 7.0 mm Max.
• Ideal for Buck Converter, VRM & High Density Board Design.
• Operating up to 1 MHz application.
• Operating Temperature Range -55°C to + 130°C; RoHS compliant.
• Inductance Range:90nH to 300nH. Custom values are welcomed.
• High current output chokes, upto 72+ Amp with max. 20% roll off.
• Low Profile 5.0mm Max. height.
• Foot Print 10.0 x 7.0 mm Max.
• Ideal for Buck Converter, VRM & High Density Board Design.
• Operating up to 1 MHz application.
• Operating Temperature Range -55°C to + 130°C; RoHS compliant.
| Part Number | Height (mm) Max | Inductance L (uH) | DCR @25℃ (mΩ) | Irms (A) @ΔT 40℃ | Isat2 (A) @25℃ Drop 20% | Dimension L (mm) Max | Dimension W (mm) Max | Description | Download | |
|---|---|---|---|---|---|---|---|---|---|---|
| 5 | 0.3 | 0.43 | 30 | 22 | 10 | 7 | 0.3uH, 20%, 0.43mOhm, 22Amp Max. SMD Power bead | Data Sheet | ||
| 5 | 0.3 | 0.33 | 33 | 22 | 10 | 7 | 0.3uH, 20%, 0.33mOhm, 22Amp Max. SMD Power bead | Data Sheet | ||
| 5 | 0.3 | 0.28 | 34 | 22 | 10 | 7 | 0.3uH, 20%, 0.28mOhm, 22Amp Max. SMD Power bead | Data Sheet | ||
| 5 | 0.3 | 0.4 | 31 | 22 | 10 | 7 | 0.3uH, 20%, 0.4mOhm, 22Amp Max. SMD Power bead | Data Sheet | ||
| 5 | 0.3 | 0.39 | 31.5 | 22 | 10 | 7 | 0.3uH, 20%, 0.39mOhm, 22Amp Max. SMD Power bead | Data Sheet | ||
| 5 | 0.2 | 0.43 | 30 | 36 | 10 | 7 | 0.2uH, 15%, 0.43mOhm, 36Amp Max. SMD Power bead | Data Sheet | ||
| 5 | 0.2 | 0.33 | 33 | 36 | 10 | 7 | 0.2uH, 15%, 0.33mOhm, 36Amp Max. SMD Power bead | Data Sheet | ||
| 5 | 0.2 | 0.28 | 34 | 36 | 10 | 7 | 0.2uH, 15%, 0.28mOhm, 36Amp Max. SMD Power bead | Data Sheet | ||
| 5 | 0.2 | 0.4 | 31 | 36 | 10 | 7 | 0.2uH, 15%, 0.4mOhm, 36Amp Max. SMD Power bead | Data Sheet | ||
| 5 | 0.2 | 0.39 | 31.5 | 36 | 10 | 7 | 0.2uH, 15%, 0.39mOhm, 36Amp Max. SMD Power bead | Data Sheet | ||
| 5 | 0.15 | 0.43 | 30 | 55 | 10 | 7 | 0.15uH, 15%, 0.43mOhm, 55Amp Max. SMD Power bead | Data Sheet | ||
| 5 | 0.15 | 0.33 | 33 | 55 | 10 | 7 | 0.15uH, 15%, 0.33mOhm, 55Amp Max. SMD Power bead | Data Sheet | ||
| 5 | 0.15 | 0.28 | 34 | 55 | 10 | 7 | 0.15uH, 15%, 0.28mOhm, 55Amp Max. SMD Power bead | Data Sheet | ||
| 5 | 0.15 | 0.4 | 31 | 55 | 10 | 7 | 0.15uH, 15%, 0.4mOhm, 55Amp Max. SMD Power bead | Data Sheet | ||
| 5 | 0.15 | 0.39 | 31.5 | 55 | 10 | 7 | 0.15uH, 15%, 0.39mOhm, 55Amp Max. SMD Power bead | Data Sheet | ||
| 5 | 0.13 | 0.43 | 30 | 56 | 10 | 7 | 0.13uH, 15%, 0.43mOhm, 56Amp Max. SMD Power bead | Data Sheet | ||
| 5 | 0.13 | 0.33 | 33 | 56 | 10 | 7 | 0.13uH, 15%, 0.33mOhm, 56Amp Max. SMD Power bead | Data Sheet | ||
| 5 | 0.13 | 0.28 | 34 | 56 | 10 | 7 | 0.13uH, 15%, 0.28mOhm, 56Amp Max. SMD Power bead | Data Sheet | ||
| 5 | 0.13 | 0.4 | 31 | 56 | 10 | 7 | 0.13uH, 15%, 0.4mOhm, 56Amp Max. SMD Power bead | Data Sheet | ||
| 5 | 0.13 | 0.39 | 31.5 | 56 | 10 | 7 | 0.13uH, 15%, 0.39mOhm, 56Amp Max. SMD Power bead | Data Sheet | ||
| 5 | 0.12 | 0.43 | 30 | 57 | 10 | 7 | 0.12uH, 15%, 0.43mOhm, 57Amp Max. SMD Power bead | Data Sheet | ||
| 5 | 0.12 | 0.33 | 33 | 57 | 10 | 7 | 0.12uH, 15%, 0.33mOhm, 57Amp Max. SMD Power bead | Data Sheet | ||
| 5 | 0.12 | 0.28 | 34 | 57 | 10 | 7 | 0.12uH, 15%, 0.28mOhm, 57Amp Max. SMD Power bead | Data Sheet | ||
| 5 | 0.12 | 0.4 | 31 | 57 | 10 | 7 | 0.12uH, 15%, 0.4mOhm, 57Amp Max. SMD Power bead | Data Sheet | ||
| 5 | 0.12 | 0.39 | 31.5 | 57 | 10 | 7 | 0.12uH, 15%, 0.39mOhm, 57Amp Max. SMD Power bead | Data Sheet | ||
| 5 | 0.1 | 0.43 | 30 | 72 | 10 | 7 | 0.1uH, 15%, 0.43mOhm, 72Amp Max. SMD Power bead | Data Sheet | ||
| 5 | 0.1 | 0.33 | 33 | 72 | 10 | 7 | 0.1uH, 15%, 0.33mOhm, 72Amp Max. SMD Power bead | Data Sheet | ||
| 5 | 0.1 | 0.28 | 34 | 72 | 10 | 7 | 0.1uH, 15%, 0.28mOhm, 72Amp Max. SMD Power bead | Data Sheet | ||
| 5 | 0.1 | 0.4 | 31 | 72 | 10 | 7 | 0.1uH, 15%, 0.4mOhm, 72Amp Max. SMD Power bead | Data Sheet | ||
| 5 | 0.1 | 0.39 | 31.5 | 72 | 10 | 7 | 0.1uH, 15%, 0.39mOhm, 72Amp Max. SMD Power bead | Data Sheet | ||
| 5 | 0.09 | 0.43 | 30 | 72 | 10 | 7 | 0.09uH, 10%, 0.43mOhm, 72Amp Max. SMD Power bead | Data Sheet | ||
| 5 | 0.09 | 0.33 | 33 | 72 | 10 | 7 | 0.09uH, 10%, 0.33mOhm, 72Amp Max. SMD Power bead | Data Sheet | ||
| 5 | 0.09 | 0.28 | 34 | 72 | 10 | 7 | 0.09uH, 10%, 0.28mOhm, 72Amp Max. SMD Power bead | Data Sheet | ||
| 5 | 0.09 | 0.4 | 31 | 72 | 10 | 7 | 0.09uH, 10%, 0.4mOhm, 72Amp Max. SMD Power bead | Data Sheet | ||
| 5 | 0.09 | 0.39 | 31.5 | 72 | 10 | 7 | 0.09uH, 10%, 0.39mOhm, 72Amp Max. SMD Power bead | Data Sheet |
