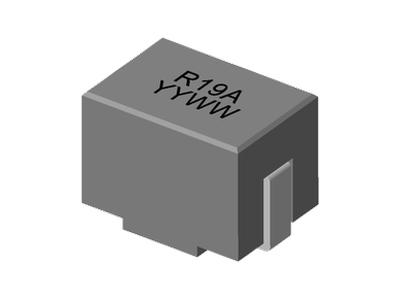

SL40307 Series
• Ferrite based SMD Inductor with lower core loss.
• Inductance Range:190nH to 230nH , Custom values are welcomed.
• High current output chokes, upto 54.0 Amp with approx. 20% roll off.
• Low Profile 7.5mm Max. height.
• 10.0 x 7.0mm foot print.
• Ideal for Buck Converter, VRM & High Density Board Design.
• Operating frequency up to 1 MHz application.
• Operating Temperature Range -55°C to + 130°C , RoHs & HF compliance.
• T & R Qtys: 500 pcs , 13'' Reel.
• Inductance Range:190nH to 230nH , Custom values are welcomed.
• High current output chokes, upto 54.0 Amp with approx. 20% roll off.
• Low Profile 7.5mm Max. height.
• 10.0 x 7.0mm foot print.
• Ideal for Buck Converter, VRM & High Density Board Design.
• Operating frequency up to 1 MHz application.
• Operating Temperature Range -55°C to + 130°C , RoHs & HF compliance.
• T & R Qtys: 500 pcs , 13'' Reel.
| Part Number | Height (mm) Max | Inductance L (uH) | DCR @25℃ (mΩ) | Irms (A) @ΔT 40℃ | Isat2 (A) @25℃ Drop 20% | Dimension L (mm) Max | Dimension W (mm) Max | Description | Download | |
|---|---|---|---|---|---|---|---|---|---|---|
| 7.5 | 0.23 | 0.2 | 60 | 43 | 10 | 7 | 0.23uH, 10%, 0.2mOhm, 43Amp Max. SMD Power bead | Data Sheet | ||
| 7.5 | 0.21 | 0.2 | 60 | 48 | 10 | 7 | 0.21uH, 10%, 0.2mOhm, 48Amp Max. SMD Power bead | Data Sheet | ||
| 7.5 | 0.19 | 0.2 | 60 | 54 | 10 | 7 | 0.19uH, 10%, 0.2mOhm, 54Amp Max. SMD Power bead | Data Sheet |
