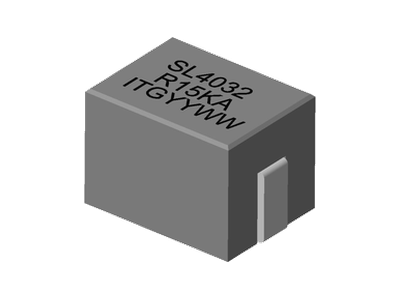

SL4032 Series
• Ferrite based SMD inductor with lower core loss.
• Inductance range: 120.0nH up to 300.0nH, custom values are welcomed.
• High current output chokes,up to 94.0 Amp with approx. 20% roll off.
• Low profile 8.00mm max height.
• Foot Print 10.90 x 8.00mm max footprint.
• Perfect for high density designs with limited board space.
• Operating frequency of up to 1.0MHz.
• Operating temperature range of -55°C to + 130°C.
• RoHS & HF compliant.
• T & R Qty’s: 450pcs, 13'' Reel.
• Inductance range: 120.0nH up to 300.0nH, custom values are welcomed.
• High current output chokes,up to 94.0 Amp with approx. 20% roll off.
• Low profile 8.00mm max height.
• Foot Print 10.90 x 8.00mm max footprint.
• Perfect for high density designs with limited board space.
• Operating frequency of up to 1.0MHz.
• Operating temperature range of -55°C to + 130°C.
• RoHS & HF compliant.
• T & R Qty’s: 450pcs, 13'' Reel.
| Part Number | Height (mm) Max | Inductance L (uH) | DCR @25℃ (mΩ) | Irms (A) @ΔT 40℃ | Isat2 (A) @25℃ Drop 20% | Dimension L (mm) Max | Dimension W (mm) Max | Description | Download | |
|---|---|---|---|---|---|---|---|---|---|---|
| 8 | 0.33 | 0.18 | 63 | 32 | 10.9 | 8 | 0.33uH, 10%, 0.18mOhm, 32Amp Max. SMD Power bead | Data Sheet | ||
| 8 | 0.3 | 0.18 | 63 | 39 | 10.9 | 8 | 0.3uH, 10%, 0.18mOhm, 39Amp Max. SMD Power bead | Data Sheet | ||
| 8 | 0.22 | 0.18 | 63 | 56 | 10.9 | 8 | 0.22uH, 10%, 0.18mOhm, 56Amp Max. SMD Power bead | Data Sheet | ||
| 8 | 0.18 | 0.18 | 63 | 66 | 10.9 | 8 | 0.18uH, 10%, 0.18mOhm, 66Amp Max. SMD Power bead | Data Sheet | ||
| 8 | 0.15 | 0.18 | 63 | 80 | 10.9 | 8 | 0.15uH, 10%, 0.18mOhm, 80Amp Max. SMD Power bead | Data Sheet | ||
| 8 | 0.12 | 0.18 | 63 | 94 | 10.9 | 8 | 0.12uH, 10%, 0.18mOhm, 94Amp Max. SMD Power bead | Data Sheet |
