- SMD

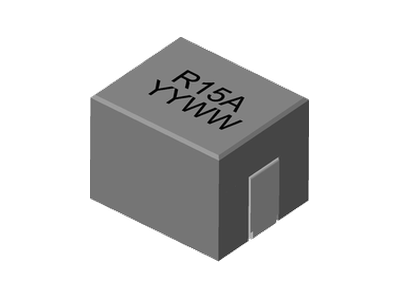

SL41329 Series
• Ferrite based SMD Inductor with lower core loss.
• Inductance:150nH to 170nH . Custom values are welcomed.
• High current output chokes, upto 84 Amp with approx. 20% roll off.
• Low Profile 8.00mm Max. height.
• Foot Print 10.41 x 8.50 mm Max.
• Ideal for Buck Converter, VRM & High Density Board Design.
• Operating frequency up to 1 MHz application.
• Operating Temperature Range -55°C to + 130°C , RoHs & HF compliance.
• T & R Qtys: 450 pcs , 13'' Reel.
• Inductance:150nH to 170nH . Custom values are welcomed.
• High current output chokes, upto 84 Amp with approx. 20% roll off.
• Low Profile 8.00mm Max. height.
• Foot Print 10.41 x 8.50 mm Max.
• Ideal for Buck Converter, VRM & High Density Board Design.
• Operating frequency up to 1 MHz application.
• Operating Temperature Range -55°C to + 130°C , RoHs & HF compliance.
• T & R Qtys: 450 pcs , 13'' Reel.
| Part Number | Height (mm) Max | Inductance L (uH) | DCR @25℃ (mΩ) | Irms (A) @ΔT 40℃ | Isat2 (A) @25℃ Drop 20% | Dimension L (mm) Max | Dimension W (mm) Max | Description | Download | |
|---|---|---|---|---|---|---|---|---|---|---|
| 8 | 0.17 | 0.14 | 64 | 71 | 10.41 | 8.5 | 0.17uH, 10%, 0.135mOhm, 71Amp Max. SMD Power bead | Data Sheet | ||
| 8 | 0.15 | 0.14 | 64 | 84 | 10.41 | 8.5 | 0.15uH, 10%, 0.135mOhm, 84Amp Max. SMD Power bead | Data Sheet |
