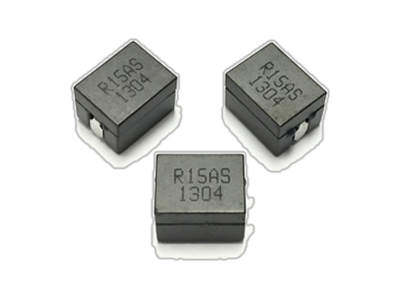

SL4134 Series
• Ferrite based SMD Inductor with lower core loss.
• Inductance Range:150nH to 170nH,Custom values are welcomed.
• High current output chokes, upto 82 Amp with approx. 20% roll off.
• Low Profile 8.60mm Max. height.
• Foot Print 10.41 x 8.00 mm Max.
• Ideal for Buck Converter, VRM & High Density Board Design.
• Operating frequency up to 1 MHz application.
• Operating Temperature Range -55°C to + 130°C , RoHs & HF compliance.
• Inductance Range:150nH to 170nH,Custom values are welcomed.
• High current output chokes, upto 82 Amp with approx. 20% roll off.
• Low Profile 8.60mm Max. height.
• Foot Print 10.41 x 8.00 mm Max.
• Ideal for Buck Converter, VRM & High Density Board Design.
• Operating frequency up to 1 MHz application.
• Operating Temperature Range -55°C to + 130°C , RoHs & HF compliance.
| Part Number | Height (mm) Max | Inductance L (uH) | DCR @25℃ (mΩ) | Irms (A) @ΔT 40℃ | Isat2 (A) @25℃ Drop 20% | Dimension L (mm) Max | Dimension W (mm) Max | Description | Download | |
|---|---|---|---|---|---|---|---|---|---|---|
| 8.6 | 0.17 | 0.13 | 65 | 74 | 10.41 | 8 | 0.17uH, 10%, 0.13mOhm, 74Amp Max. SMD Power bead | Data Sheet | ||
| 8.6 | 0.17 | 0.16 | 58 | 74 | 10.41 | 8 | 0.17uH, 10%, 0.16mOhm, 74Amp Max. SMD Power bead | Data Sheet | ||
| 8.6 | 0.15 | 0.13 | 65 | 82 | 10.41 | 8 | 0.15uH, 10%, 0.13mOhm, 82Amp Max. SMD Power bead | Data Sheet | ||
| 8.6 | 0.15 | 0.16 | 58 | 82 | 10.41 | 8 | 0.15uH, 10%, 0.16mOhm, 82Amp Max. SMD Power bead | Data Sheet |
