- SMD

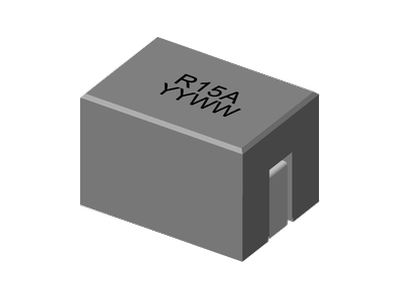

SL43288 Series
• Ferrite based SMD Inductor with lower core loss.
• Custom values are welcomed.
• High current output chokes, upto 35 Amp with approx. 20% roll off.
• Low Profile 7.4mm Max. height.
• Foot Print 11.2 x 7.7 mm Max.
• Ideal for Buck Converter, VRM & High Density Board Design.
• Operating frequency up to 1 MHz application.
• Operating Temperature Range -55°C to + 130°C , RoHs & HF compliance.
• Custom values are welcomed.
• High current output chokes, upto 35 Amp with approx. 20% roll off.
• Low Profile 7.4mm Max. height.
• Foot Print 11.2 x 7.7 mm Max.
• Ideal for Buck Converter, VRM & High Density Board Design.
• Operating frequency up to 1 MHz application.
• Operating Temperature Range -55°C to + 130°C , RoHs & HF compliance.
| Part Number | Height (mm) Max | Inductance L (uH) | DCR @25℃ (mΩ) | Irms (A) @ΔT 40℃ | Isat2 (A) @25℃ Drop 20% | Dimension L (mm) Max | Dimension W (mm) Max | Description | Download | |
|---|---|---|---|---|---|---|---|---|---|---|
| 7.4 | 0.37 | 0.7 | 35 | 35 | 11.2 | 7.7 | 0.37uH, 15%, 0.7mOhm, 35Amp Max. SMD Power bead | Data Sheet | ||
| 7.4 | 0.37 | 0.7 | 35 | 35 | 11.2 | 7.7 | 0.37uH, 15%, 0.7mOhm, 35Amp Max. SMD Power bead | Data Sheet |
