- SMD

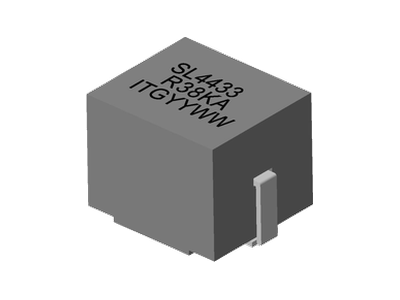

SL4433 Series
• Ferrite based SMD Inductor with lower core loss.
• Inductance:220nH to 630nH . Custom values are welcomed.
• High current output chokes, upto 40 Amp with approx. 20% roll off.
• Low Profile 8.4mm Max. height.
• Foot Print 11.2 x 9.0 mm Max.
• Ideal for Buck Converter, VRM & High Density Board Design.
• Operating frequency up to 1 MHz application.
• Operating Temperature Range -55°C to + 130°C , RoHs compliance.
• Inductance:220nH to 630nH . Custom values are welcomed.
• High current output chokes, upto 40 Amp with approx. 20% roll off.
• Low Profile 8.4mm Max. height.
• Foot Print 11.2 x 9.0 mm Max.
• Ideal for Buck Converter, VRM & High Density Board Design.
• Operating frequency up to 1 MHz application.
• Operating Temperature Range -55°C to + 130°C , RoHs compliance.
| Part Number | Height (mm) Max | Inductance L (uH) | DCR @25℃ (mΩ) | Irms (A) @ΔT 40℃ | Isat2 (A) @25℃ Drop 20% | Dimension L (mm) Max | Dimension W (mm) Max | Description | Download | |
|---|---|---|---|---|---|---|---|---|---|---|
| 8.4 | 0.38 | 0.53 | 45 | 40 | 11.2 | 9 | 0.38uH, 10%, 0.53mOhm, 40Amp Max. SMD Power bead | Data Sheet | ||
| 8.4 | 0.38 | 0.6 | 45 | 40 | 11.2 | 9 | 0.38uH, 10%, 0.6mOhm, 40Amp Max. SMD Power bead | Data Sheet |
