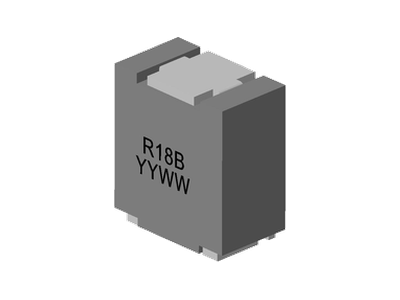

SLA40456B Series
• Ferrite based SMD Inductor with lower core loss.
• Custom values are welcomed.
• High current output chokes, upto 57.0 Amp with approx. 20% roll off.
• Low Profile 11.5mm Max. height.
• Foot Print 10.2 x 6.0 mm Max.
• Ideal for Buck Converter, VRM & High Density Board Design.
• Operating frequency up to 1 MHz application.
• Operating Temperature Range -55°C to + 130°C, RoHs & HF compliance.
• Custom values are welcomed.
• High current output chokes, upto 57.0 Amp with approx. 20% roll off.
• Low Profile 11.5mm Max. height.
• Foot Print 10.2 x 6.0 mm Max.
• Ideal for Buck Converter, VRM & High Density Board Design.
• Operating frequency up to 1 MHz application.
• Operating Temperature Range -55°C to + 130°C, RoHs & HF compliance.
| Part Number | Height (mm) Max | Inductance L (uH) | DCR @25℃ (mΩ) | Irms (A) @ΔT 40℃ | Isat2 (A) @25℃ Drop 20% | Dimension L (mm) Max | Dimension W (mm) Max | Description | Download | |
|---|---|---|---|---|---|---|---|---|---|---|
| 11.5 | 0.18 | 0.29 | 55 | 72 | 11.5 | 10.2 | 0.18uH, 10%, 0.29mOhm, 72Amp Max. SMD Power bead | Data Sheet |
