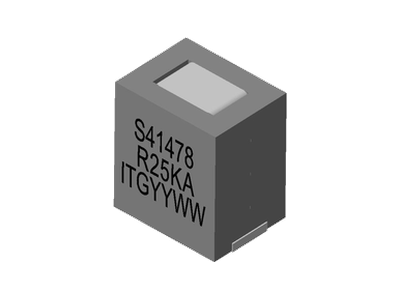

SLA41478 Series
• Ferrite based SMD Inductor with lower core loss.
• Custom values are welcomed.
• High current output chokes, upto 73.00 Amp with approx. 50% roll off.
• Low Profile 12.00 mm Max.height.
• 10.80 x 8.20 mm Foot Print.
• Ideal for Buck Converter, VRM & High Density Board Design.
• Operating frequency up to 1 MHz application.
• Operating Temperature Range -55°C to + 130°C , RoHs & HF compliant.
• T & R Qtys: 350 pcs , 13'' Reel.
• Custom values are welcomed.
• High current output chokes, upto 73.00 Amp with approx. 50% roll off.
• Low Profile 12.00 mm Max.height.
• 10.80 x 8.20 mm Foot Print.
• Ideal for Buck Converter, VRM & High Density Board Design.
• Operating frequency up to 1 MHz application.
• Operating Temperature Range -55°C to + 130°C , RoHs & HF compliant.
• T & R Qtys: 350 pcs , 13'' Reel.
| Part Number | Height (mm) Max | Inductance L (uH) | DCR @25℃ (mΩ) | Irms (A) @ΔT 40℃ | Dimension L (mm) Max | Dimension W (mm) Max | Description | Download | |
|---|---|---|---|---|---|---|---|---|---|
| 12 | 0.27 | 0.15 | 75 | 10.8 | 8.2 | 0.27uH, 10%, 0.15mOhm, 75Amp Max. SMD Power bead | Data Sheet | ||
| 12 | 0.25 | 0.15 | 75 | 10.8 | 8.2 | 0.25uH, 10%, 0.15mOhm, 75Amp Max. SMD Power bead | Data Sheet |
