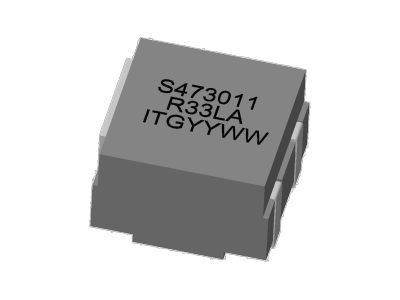

SLA473011 Series
• Ferrite based SMD Inductor with lower core loss.
• Custom values are welcomed.
• High current output chokes, upto 47.0 Amp with approx. 20% roll off.
• Low Profile 7.5mm Max. height.
• Foot Print 12.1 x 11.4 mm Max.
• Ideal for Buck Converter, VRM & High Density Board Design.
• Operating frequency up to 1 MHz application.
• Operating Temperature Range -55°C to + 130°C , RoHs compliance.
• Custom values are welcomed.
• High current output chokes, upto 47.0 Amp with approx. 20% roll off.
• Low Profile 7.5mm Max. height.
• Foot Print 12.1 x 11.4 mm Max.
• Ideal for Buck Converter, VRM & High Density Board Design.
• Operating frequency up to 1 MHz application.
• Operating Temperature Range -55°C to + 130°C , RoHs compliance.
| Part Number | Height (mm) Max | Inductance L (uH) | DCR @25℃ (mΩ) | Irms (A) @ΔT 40℃ | Isat2 (A) @25℃ Drop 20% | Dimension L (mm) Max | Dimension W (mm) Max | Description | Download | |
|---|---|---|---|---|---|---|---|---|---|---|
| 7.5 | 0.33 | 0.5 | 53 | 47 | 12.1 | 11.4 | 0.33uH, 15%, 0.5mOhm, 53Amp Max. SMD Power bead | Data Sheet |
